stm32_artnet_dmx

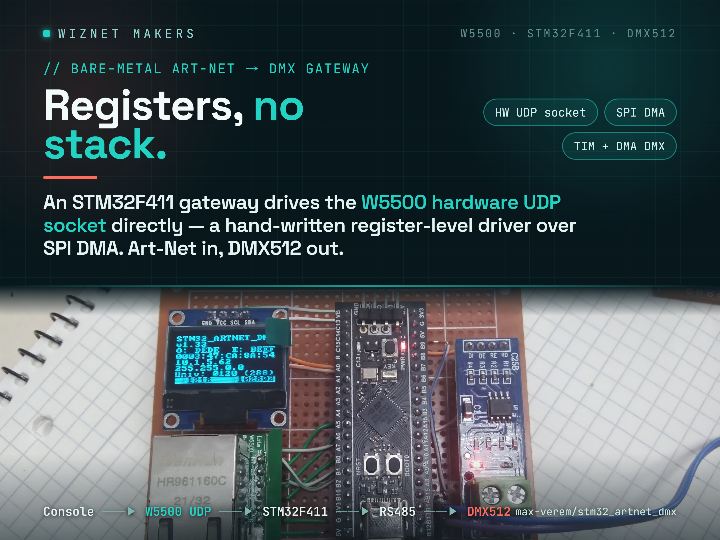

An Art-Net → DMX512 lighting gateway on STM32F411 + W5500, driving the W5500's hardware UDP socket directly and optimized for low latency with SPI/TIM DMA.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

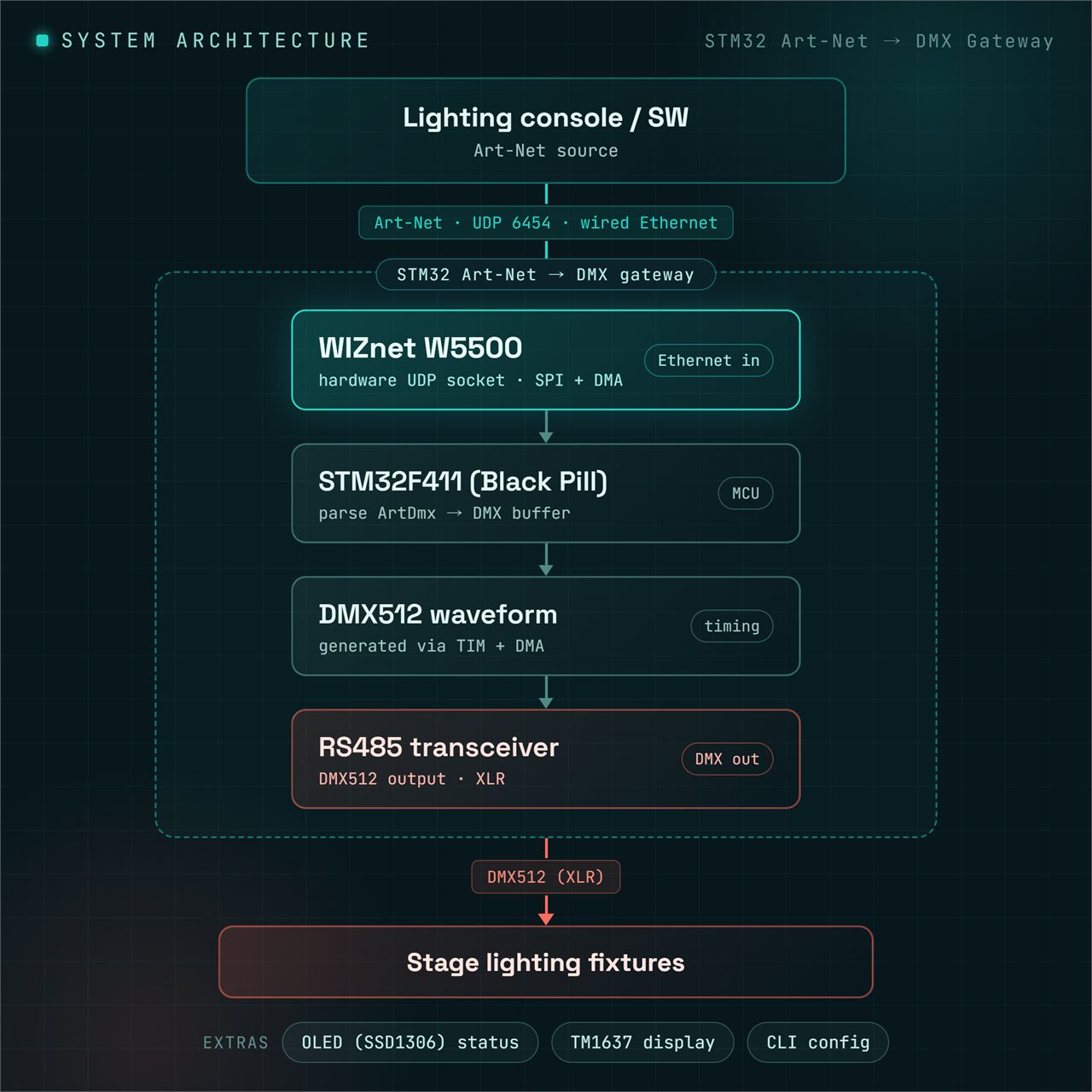

How a Bare-Metal STM32 Art-Net Gateway Uses the WIZnet W5500 Hardware UDP Socket for Low-Latency DMX512 Output Overview Stage and performance lighting needs a gateway that converts the Art-Net commands a console sends over Ethernet into the DMX512 signal that fixtures receive directly. This project is an Art-Net → DMX512 gateway built on an STM32F411 (Black Pill) microcontroller. Its defining trait is bare-metal optimization. Instead of relying on an off-the-shelf network library, it controls the chip at the register level with a hand-written W5500 driver. Here the WIZnet W5500 is the…
