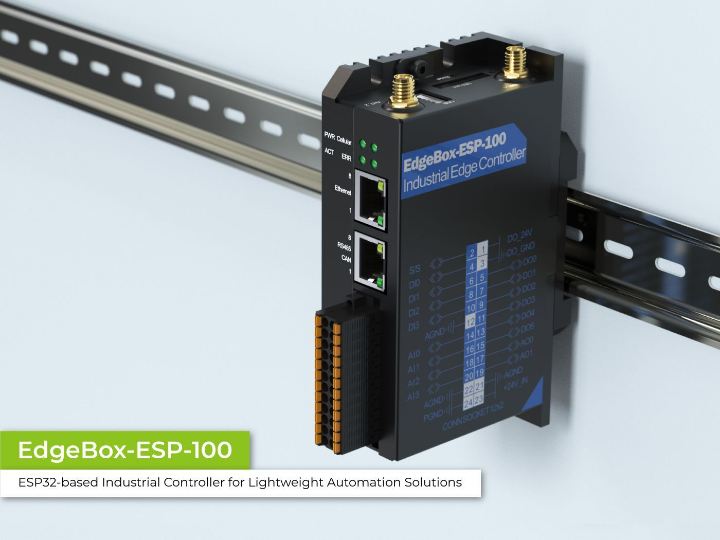

EdgeBox-ESP-100

Industrial Edge Controller, WiFi, BLE, 4G LTE, DIO, AIO, Ethernet, CAN, RS485

viktor

Published June 14, 2023

Original author: SeeedOriginal source (new tab)

EdgeBox-ESP-100

Components

Hardware components

WIZnet parts

Project description

PRODUCT DETAILS

EdgeBox-ESP-100 represents the lightweight, multi-functional controller. It carries various wireless capabilities and multiple Fieldbus, which makes it an independent PLC for field automation applications, or enables it as an industrial gateway for offering the original PLC the communicated ability to network and cloud.



Feature

  • Multi-Fieldbus Support: CAN, RS485, Ethernet
  • Multi-wireless Capability: On-chip Wifi, BLE connectivity; built-in Cellular 4G LTE module
  • Reliable Hardware Design: Rugged, maintenance-reduced structure
  • Reliable Electrical Design: High isolation, High surge, and short circuit protection
  • IEC 61131-3 compliant programs support (under development)
  • Programmable with ESP-IDF




Description



EdgeBox-ESP-100 is an ESP32-based controller designed for lightweight automation solutions. It supports analog input, effectively monitoring and controlling in a remote environment, ideal for PID control loops, logic sequencing control, or a gateway with flexible wireless and field sensors expansion.



Besides EdgeBox-ESP-100, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio Edge Series Page.



It offers isolated CAN, RS485 Fieldbus connections, and rich IO resources for extensive facilities and sensors input, for both digital and analog signals. It is perfectly satisfactory to the PLC and field automation applications.





Since it contains on-chip Wi-Fi and BLE functions, and also includes a 4G LTE module Cellular, EdgeBox-ESP-100 can be utilized to establish an industrial gateway, enabling the original PLC to connect the network or cloud.





This portable box comes with rugged hardware, an electrical design, and an aluminum alloy enclosure, by which it maintains its function in a wide temperature range and provides high surge and short circuit protection, for diverse deployment methods based on your business.



Specification

ParametersDetail
Basic
CPUESP32S3
Memory512KB + 8MB RAM
Storage16MB Flash
Wireless
WiFion-chip 2.4 GHz
Bluetoothon-chip Bluetooth 5.0, BLE
Cellular4G - A7670G SIMCom LTE Cat 1 module
LoRa®Supported*
Interface
Ethernet100M RJ45 *1
USBUSB2.0 A*1
CAN BUSCAN BUS *1 (Isolated)
RS SerialRS485 *1 (Isolated)
Digital Input4 (Isolated) onboard

DC input Voltage - 24V

Digital Output6 (isolated)
Recommended Voltage - 24V
Analog Input4 (Isolated)

Input: 0 ~ 20 mA default, 0-10V optional

Analog Output2 (Isolated)
Output: 0 ~ 5 V
Power Supply10.8 ~ 36 V
Extra features
RTCRTC
Encryption ChipAtecc608a(optional)
Operation temperature-20 to +60 °C
CertificationRoHS, CE, FCC, UKCA
Warranty2 Years



EdgeBox-ESP-100, Specification

Note

The box supports LoRaWAN® communication but requires soldering to replace the 4G module. If you want to customize it in LoRaWAN® communicating or customize features marked as 'Optional' , feel free to email us at produce@seeed.cc.



Application

  • SCADA
  • Industrial Controller
  • Proportional, Integral, and Derivative (PID) control loops;
  • Logic Sequencing Control
  • Industrial Gateway



Part List





EdgeBox-ESP-100



x1





EdgeBox-ESP-100, Part List

Note

The LoRa® Mark is a trademark of Semtech Corporation or its subsidiaries. LoRaWAN® is a mark used under license from the LoRa Alliance®.



FAQ

What is the maximum operating voltage?

The maximum operating voltage is 60V.





ECCN/HTS

HSCODE8471419000
USHSCODE8471490000
UPC
EUHSCODE8471707000
COOCHINA
RoHS1
