RP2040 Ethernet+PoE 汎用IOモジュール
PoE対応のEthernetおよび多様な入出力インターフェースを備えた汎用RP2040モジュールです。
フォトカプラ絶縁NPN入出力、-10V～+10V/4mA～20mAアナログ入力、I2C対応のGrove互換コネクタ、RS-485インターフェース等を備えており、PoE/USB/DC9～27Vの様々な電源に対応していま
0
Components
Hardware components
WIZnet - W5500
x 1
Raspberry Pi - RP2040
x 1
Project description

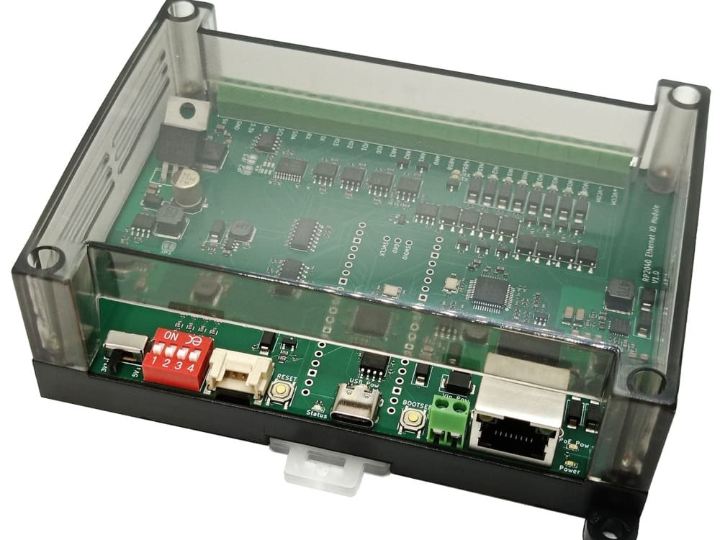

It is a general-purpose RP2040 module with PoE-enabled Ethernet and a variety of input/output interfaces. It is equipped with optocoupler isolated NPN inputs and outputs, -10V~+10V/4mA~20mA analog inputs, I2C-compatible Grove compatible connectors, RS-485 interfaces, etc., and supports various power supplies of PoE/USB/DC9~27V. It is also housed in a case that can be fixed with a DIN rail or screw for easy installation. The user is free to program according to the application. feature Compatible with various power supplies of PoE/USB/DC9~27V 4 x optocoupler isolated inputs (supports…
