ET-ESP32 GATEWAY
ET-ESP32 GATEWAY
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
ET-ESP32 GATEWAY is a microcontroller board based on ESP32 family. The board uses ESP32 module of espressif model ESP32-WROVER-B as MCU on board. Board ET-ESP32 GATEWAY is designed to support applications in the form of A small Gateway device for connecting between the Internet network and various I/O devices or Sensors. In terms of connecting to external Internet networks, it can be connected via WiFi or Ethernet LAN signals and In terms of connecting with other I/O devices or Sensors, it can be connected via I2C Bus either I2C Bus-3.3V and I2C Bus-5V such as ET-I2C REL8 , ET-I2C DCIN8 or RS485 such as Modbus RTU or Frequency such as LoRa Module/GSM Module/GPS that use USART TTL connection.
feature
- Using ESP32 ESP-WROOM-32
- SMD MODULE, ESP32-D0WDQ6, 2 CORES 32 bit LX6 MCU, 600 MIPS, 4MB SPI FLASH, 8MB PSRAM
- WIFI 802.11 b/g/n, 2.4GH-2.56GHz
- BLUETOOTH V4.2 BR/EDR AND BLE
- TEMPERATURE SENSOR, 440 MHZ CRYSTAL
- HARDWARE MODULE INTERFACES SD CARD
- UART
- SPI
- SDIO
- I2C
- ADC
- DAC
- HALL SENSOR
- I2C RTC:DS3231 with Battery Backup included
- With I2C EEPROM:24xx(Option)
- 2 channel RS485 Half Duplex Auto Direction Transceiver (ON BOARD will provide 1 channel)
- 1 RJ45 Ethernet LAN slot (W5500 Wiznet)
- 3.3V I2C Bus is connected via Connector Wafer 5Pin and Screw Terminal 4Pin for system expansion.
- 5V I2C Bus is connected through Connector Wafer 4Pin and Screw Terminal 4Pin for system expansion.
- 1 Mini Buzzer sound generator
- 2 LED Power 5V/3.3V Status and 3 LED Free User Status
- 7-24VAC/DC Power Supply Input
- PCB size 122 x 87mm.
- [Additional purchase] Compatible with ETT's LoRa RAK4270 module.
- LORA-RAK4270-AS923 MODULE ( P-ET-A-00688 ) 480.-
- [Additional purchase] can be installed in BOX DIN box
- BOX DIN ESP32 GATEWAY(A-BX-E-00104) that adds a LAN slot and a sticker, price 210.-
- [Additional purchase] ET-USB USART/TTL (P-ET-A-00580) price 280.- can be used to develop program with ET-ESP32 GATEWAY set
In the set ET-ESP32 GATEWAY ... contains
- ET-ESP32 GATEWAY
- Documentation [download below]

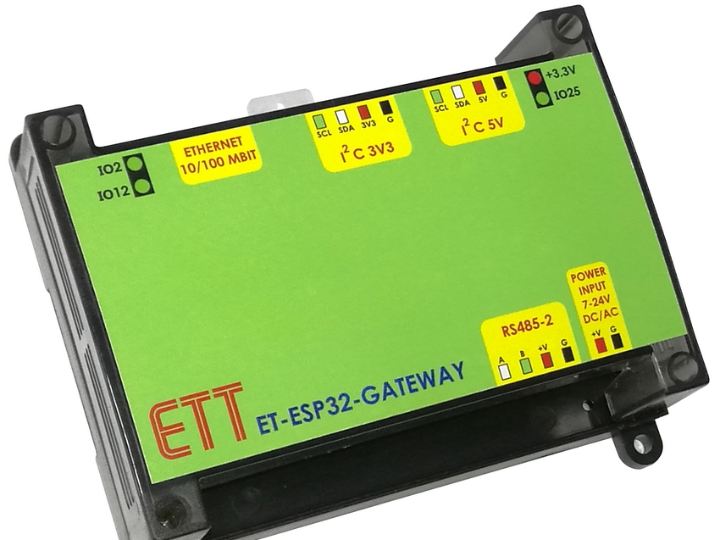

Example of connection with RAK4270 LORA and ET-USB USART/TTL Example of connection with RAK4270 LORA Example of connection with ET-USB USART/TTL BOX DIN ESP32 GATEWAY(A-BX-E-00104) that penetrates the LAN port and sticker price 210.- Example of BOX DIN ESP32 GATEWAY assembly with board Example of BOX DIN ESP32 GATEWAY assembly with board
