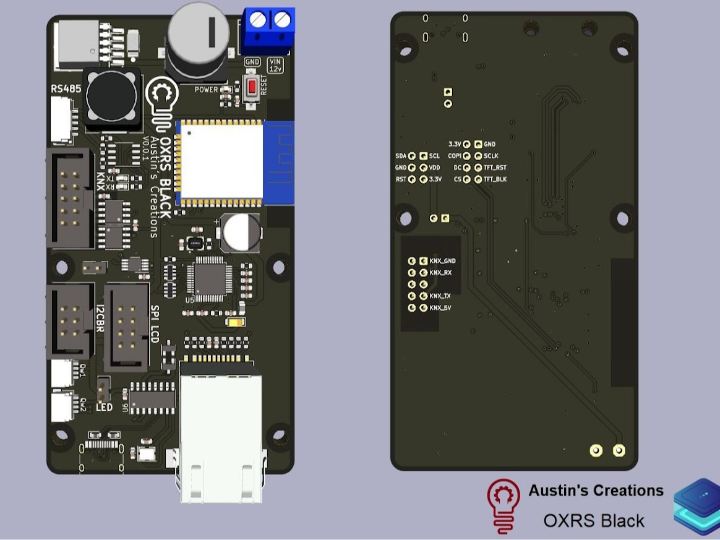

OXRS Black
A general purpose control board for rack mount projects.
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
A general purpose control board for rack mount projects. DIY rack-mount projects often require an Ethernet connection, a status display, power regulation, and other features that are not specific to the project. This board fits into a rack-mount case and provides those common features so they don't have to be recreated every time. # Features ESP32 microcontroller with WiFi. 10/100Mbps Ethernet. Screw terminal block for 12-24v DC power input (12v recommended system voltage). 6-way IDC "I2C-Breakout" header for linking to other boards. 8-way IDC "SPI-LCD" header for connection to an LCD…
