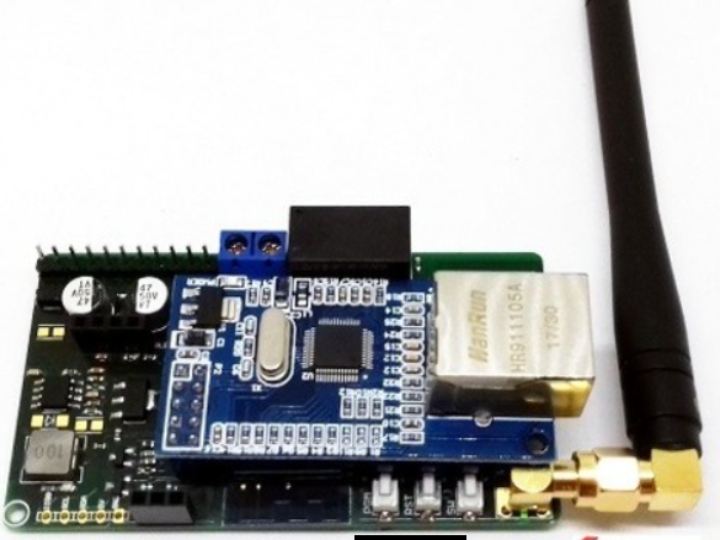

ESP32 Tranceptor Rf4463PRO e Lora 1276 AFSmartRadio
It has the widespread ESP32 Wifi module, Slot for inserting the RF4463Pro or Lora 1276 module, Slot for connecting the Ethernet module W5500
2
Components
Hardware components
WIZnet - W5500
x 1
Project description
AFSmartRadio ESP32 for Tranceptor Rf4463PRO and Lora 1276
ESP32 development module, and for development with RF4463Pro and Lora 1276 transceivers radios .
In order to facilitate the development using the Radio Frequency modules Tranceptor Rf4463PRO and Lora 1276 in IOT (internet of things).
A base board with ESP32 was developed to make life easier for makers and programmers.
Excellent for professional applications, home automation, industrial automation, academic work, courses, etc...
It has the already widespread ESP32 Wifi module, Slot for inserting the RF4463Pro or Lora 1276 module, it is necessary to choose a position because each module has its specific pinout, integrated DC switching source, relay for General use, button for General use, Slot for connecting the Ethernet module W5500, SDCard memory card slot, side bus pins, external antenna input according to module frequency.
Specifications:
Power Voltage: 9~15Vdc
Main Processor ESP-32
Bluetooth BLE
Input for modules: Rf4463PRO or Lora1276 (necessary to assemble Slot according to the chosen model)
Wifi Module - ESP32 - already integrated in the project
Slot for MicroSD Card
Relay Output: 250Vac@5A
Button for General use
Input for External Antenna
Position Slot for I2c communication Level
Converter I2c already integrated in the module
Position Slot for Ethernet module W5500
