LAN-Bee

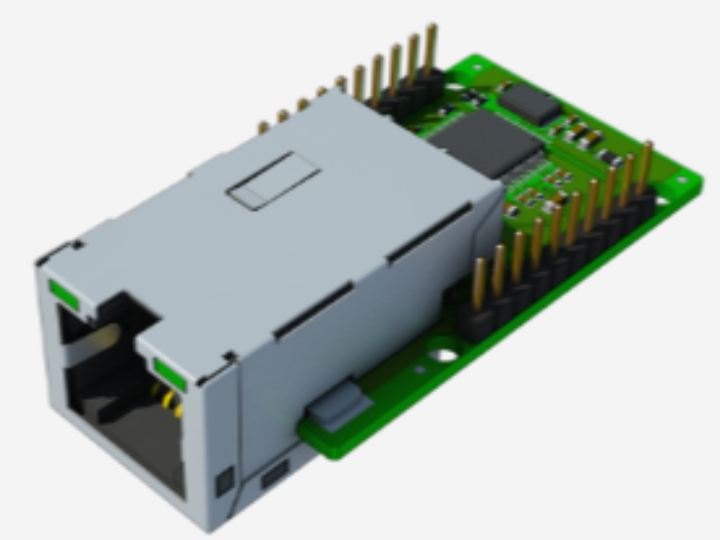

The LAN-Bee connects the senseBox to the internet via Ethernet, using the Wiznet W5500 chip for fast data transfer.

WIZnet

Published October 04, 2023

Original author: SenseBox · GermanyOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

Das Ethernet- bzw. LAN-Bee ist ein Verbindungsstück, um die senseBox via LAN-Kabel mit dem Internet zu verbinden und Daten zu übertragen. Das LAN-Bee basiert auf dem W5500 Mikrochip von Wiznet, welcher eine hohe Datenübertragungsrate ermöglicht. Weitere Informationen findest Du hier. Hinweis: Das LAN-Bee wird ohne LAN-Kabel geliefert. Technische Details "plug-in-and-go" senseBox kompatibel 3.3V Betriebsspannung mit 5V I/O signal Toleranz "plug-in-and-go" senseBox kompatibel 3.3V Betriebsspannung mit 5V I/O signal Toleranz Datenblatt https://sensebox.kaufen/assets/datenblatt/_LAN.pdf
