ENGAUTOMATION ETHERNET E2

gcncE-2

WIZnet

Published November 02, 2023

Original author: engautomation · BrazilOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

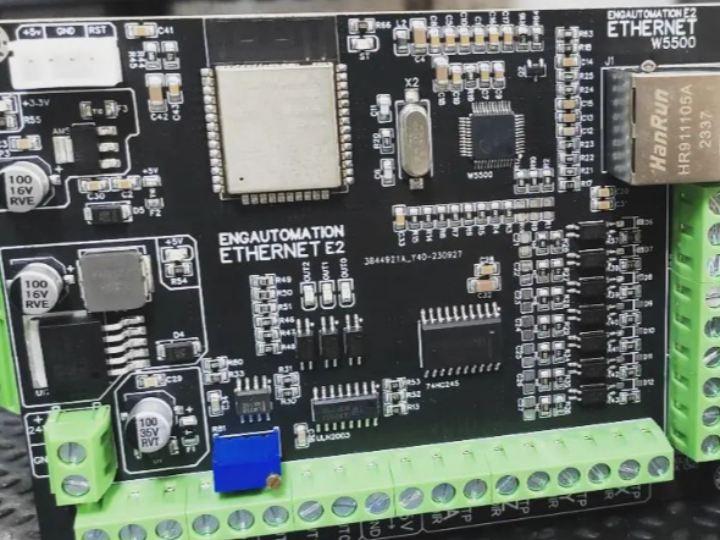

•DESCRIÇÃO GERAL Interface Placa Controladora com transmissão de dados via porta Rj45 Ethernet. ENG E-2 Suporta até 4 eixos,7 Entradas e 3 Saídas sendo: 1 saída Analógica 0~10V. Entradas para sensor Home, Fim-de-Curso, Probe etc,.... Pode controlar a velocidade ou rotação (RPM) do Spindle . Possui saída para acionamento Liga/Desliga do Spindle. • Software de controle: Linux cnc Emc2 • Sistema Operacional Linux • Speed Frequency: 100 kHz • Transmissão de dados: Porta RJ45 Ethernet • Alimentação de energia: (+24VDC) • Quantidade de eixos: 4 eixos (X, Y, Z, A) - (Pulso e Direção) • Entradas /…
