W5500 SPI USR-ES1 Arduino UNO Connection

Original : https://blog.mesebilisim.com/2022/07/w5500-spi-usr-es1-arduino-uno-baglants.html

Author : electrocoder
Published On : 2022-07-08

This content was created with the assistance of ChatGPT, an artificial intelligence language model developed by OpenAI.

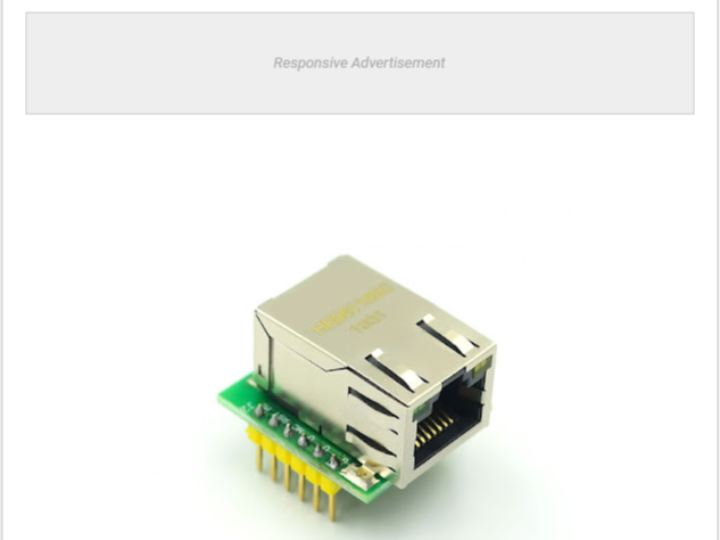

The W5500 is a remarkable wired TCP/IP embedded Ethernet controller designed to facilitate seamless internet connectivity for embedded systems through the utilization of SPI (Serial Peripheral Interface).

Ideal for users seeking a stable internet connection, the W5500 encompasses a single chip solution that encompasses a TCP/IP Stack, a 10/100 Ethernet MAC, and a PHY (Physical Layer).

With its wired TCP/IP stack, the W5500 supports a comprehensive range of protocols including TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE. These protocols have been extensively tested and proven reliable in a myriad of applications over the years.

To facilitate efficient data communication, the W5500 incorporates a generous 32 Kbyte internal buffer as data communication memory. This ample buffer space ensures smooth and uninterrupted data transfer, enhancing the overall performance of the embedded system.

The W5500 stands as an excellent choice for developers and users aiming to establish a robust and dependable internet connection in their embedded systems. With its integrated features and proven track record, the W5500 simplifies the implementation of internet connectivity and enables reliable communication over Ethernet networks.

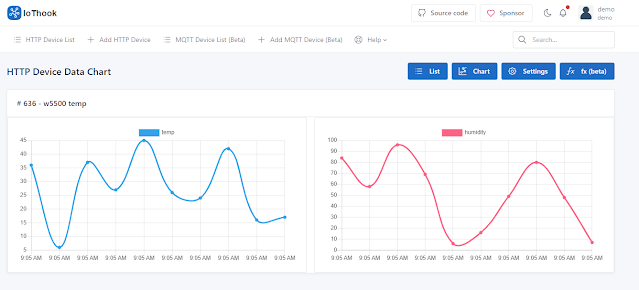

The author draws data charts through HTTP. And source codes are shared on github.

Please visit the author's article for more details.

Thank you for reading.
