ESP32 W5500 NTP Client

ESP32 W5500 NTP Client

WIZnet

Published December 30, 2022

Original author: Adull KKUOriginal source (new tab)

ESP32 W5500 NTP Client

Components

Hardware components

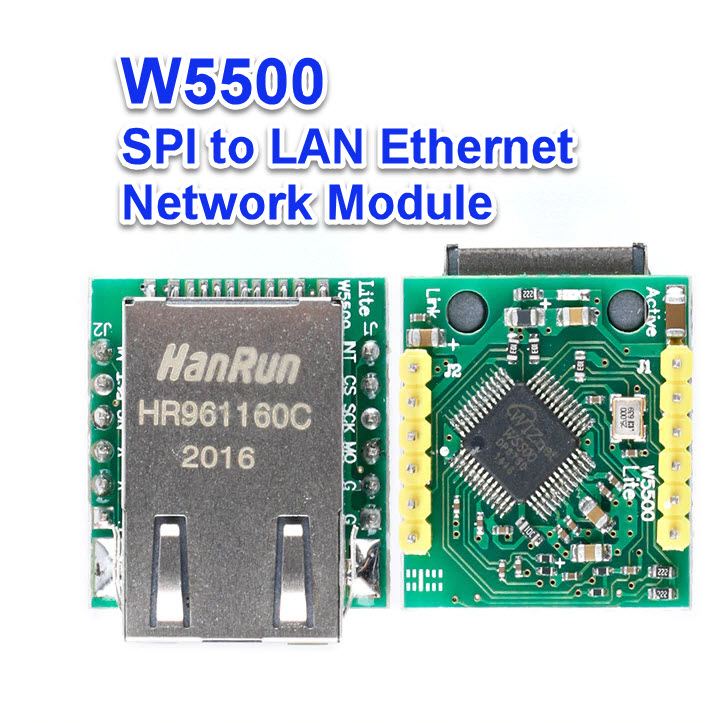

W5500

WIZnet - W5500

x 1

Espressif ESP32 Development Board - Developer Edition

Espressif - Espressif ESP32 Development Board - Developer Edition

x 1

WIZnet parts

Project description

Original : https://nanosofttech.wordpress.com/2022/11/30/esp32-w5500-ntp-client/

https://nanosofttech.wordpress.com/2022/12/19/esp32-w5500-ntp-client-7-thailand-zone/

Author : NanoSoftTech
Published On : 2022-11-30

The author tried to use NTP through the W5500 module on the ESP32.

Reference URL : https://github.com/PuceBaboon/ESP32_W5500_NTP_CLIENT

ESP32 W5500 NTP Client

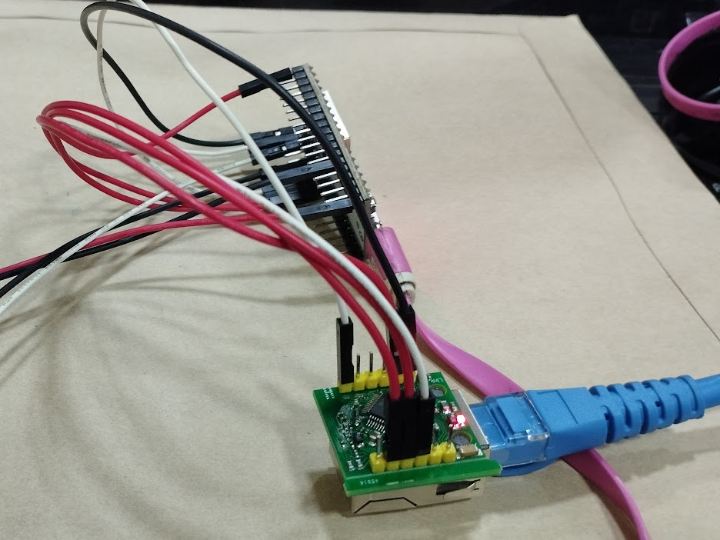

There are pin connections between ESP32 and the W5500 module.

ESP32 — W5500
GPIO23 — MOSI
GPIO19 — MISO
GPIO18 — SCLK
GPIO5 — SCS
GPIO26 — RESET

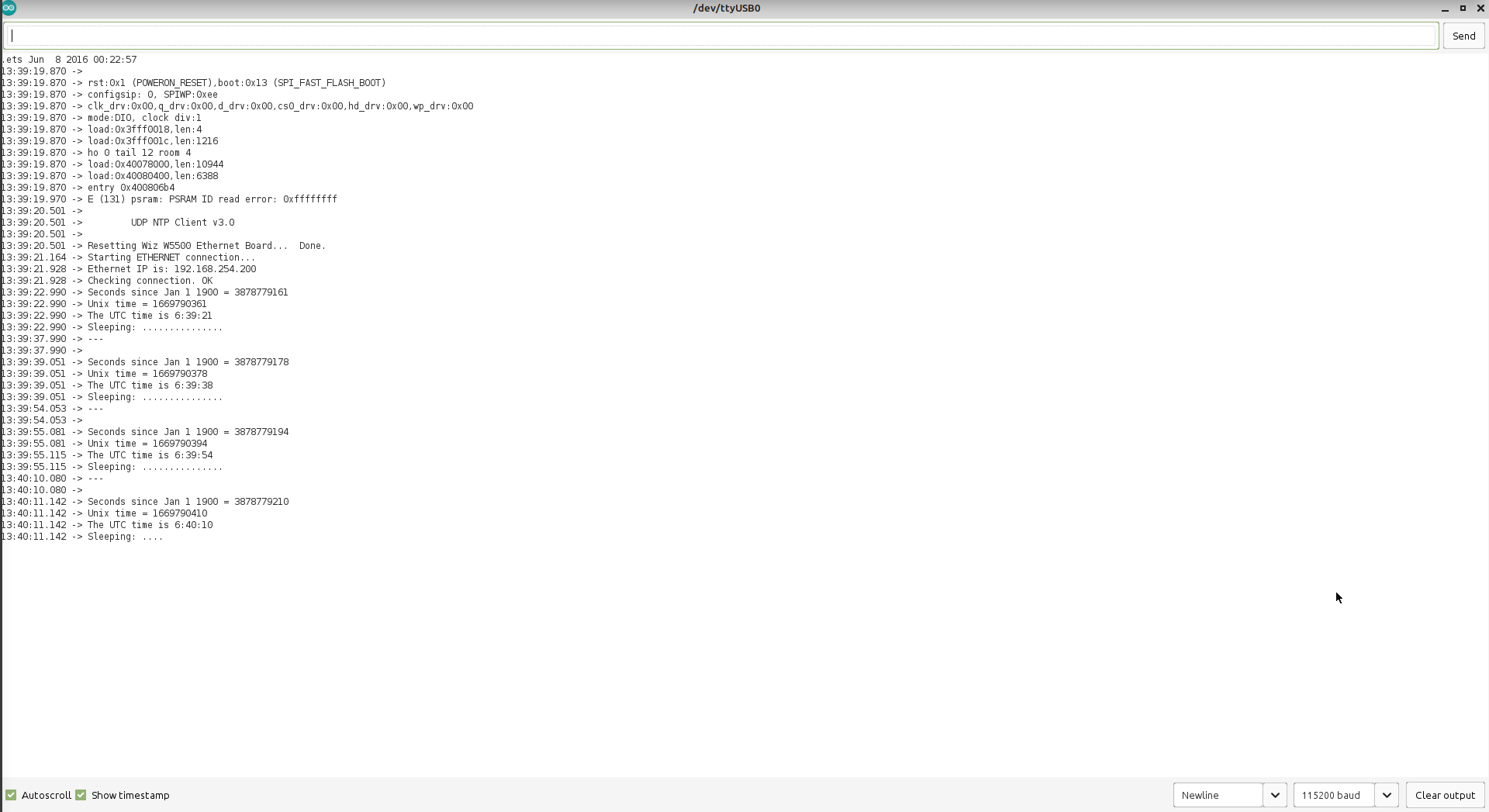

There are source codes with comments.

ESP32 W5500 NTP Client

Thank you for reading.
