ST-W55RP20-C16 – Pico Ethernet Evaluation Board

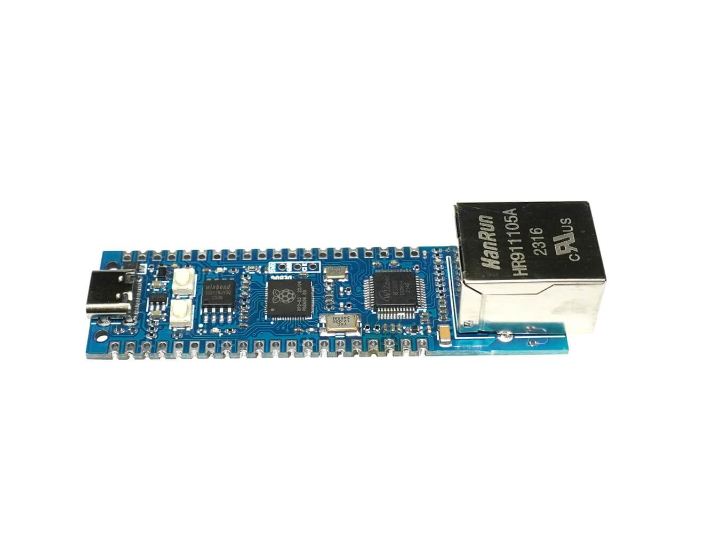

The ST-W55RP20-C16 board, based on the structure of the WIZnet W5500-EVB-Pico, is an enhanced clone board that integrates the RP2040, W5500, and 16M flash.
0
Components
Hardware components
WIZnet - W5500
x 1
Raspberry Pi - RP2040
x 1
Project description
1. Clone Board Built on the W5500-EVB-Pico Architecture The ST-W55RP20 series is a functional clone of the WIZnet W5500-EVB-Pico, inheriting its core architecture and software ecosystem. It uses the same design philosophy—RP2040 MCU + W5500 Ethernet controller—ensuring identical behavior in networking, peripheral usage, and software compatibility. By maintaining the Raspberry Pi Pico form factor and pin mapping, this board seamlessly supports existing Pico expansion boards, shields, and circuit designs without modification. This makes it a direct, drop-in replacement for EVB-Pico-based…
