MySX STM32 BluePill

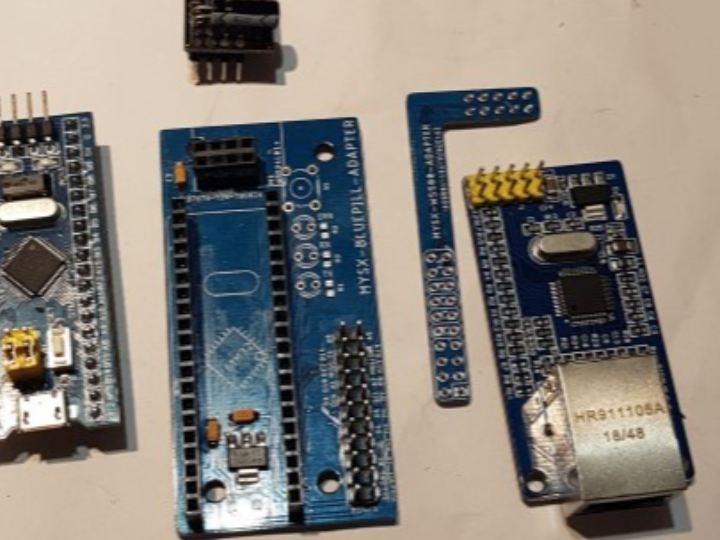

MySX board for STM32F103C8T6 "Blue pill"

ssekim

Published October 27, 2022 · © Apache License 2.0 (Apache-2.0)

55 UCC

18 VAR

Original author: KooLru · RussiaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

Blue pill board SPI1 for NRF24 SPI2 for W5100|W5500 module (MYSX_SPI) I2C 2 (MYSX_I2C) SDA PB11 SCL PB10 Before begin call Wire.setSDA(MYSX_SDA); Wire.setSCL(MYSX_SCL); Arduino_Core_STM32 Sketch file MySensors STM32 Cores / branch stm32_cores MySensors STM32 Cores / branch spi2 MySensors Gateway with w5500 | w5100 | Serial adapter
