Bluepill Ethernet Sensor Extension Board
This project is about an extension board for the Bluepill (based on stm32f103)
2
Components
Hardware components
WIZnet - W5500
x 1
Project description

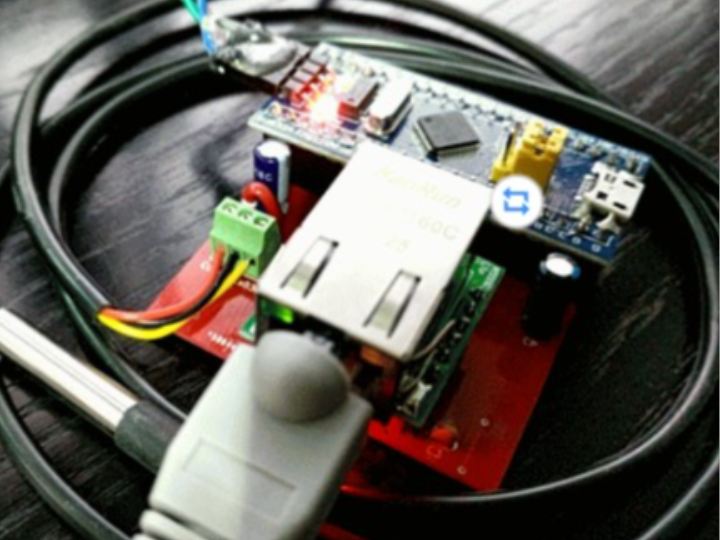

This project is about an extension board for the Bluepill (based on stm32f103) I develop in my spare time. I use this board to monitor the temperature at various places in my house, the CO2 concentration at my desktop as well as my energy consumption. All values are polled through the network (UDP) by munin. You can even watch some live readings here. The board is designed to be stacked on top of another expansion PCB and provides the following functionality itself: an ethernet connection via W5500 an OneWire connector (3.3v, GND, Data) an EEPROM socket (AT93C46W via DIP or SOIC) temperature…
