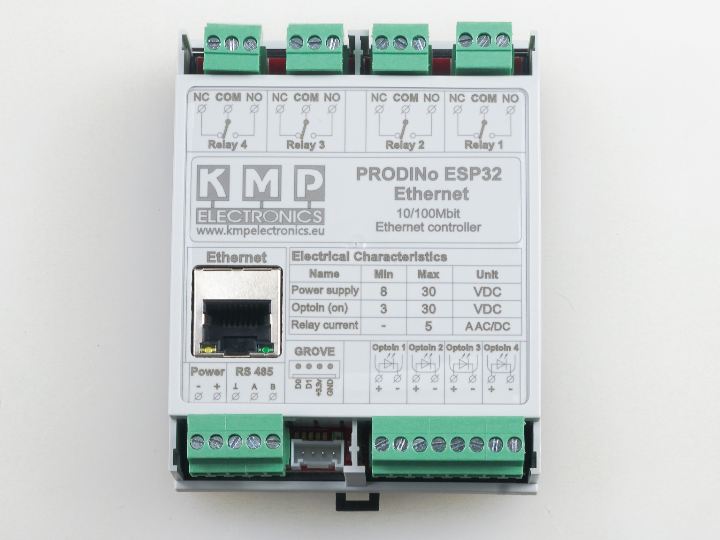

PRODINo ESP32 Ethernet v1 – W5500-enabled Industrial IoT Board

Industrial IoT board with ESP32-WROOM-32 + WIZnet W5500 Ethernet, RS485, 4 relays & opto-isolated inputs. Wired network made easy.

sophia

Published October 28, 2025

Original author: KMP Electronics Ltd · BulgariaOriginal source (new tab)

PRODINo ESP32 Ethernet v1 – W5500-enabled Industrial IoT Board

Components

Hardware components

WIZnet parts

Project description

Hardware Components: ESP32-WROOM-32 module (dual-core 32-bit LX6, 240 MHz, SRAM 520 KB, Flash 4 Mb) WIZnet W5500 Ethernet controller (hard-wired TCP/UDP/IPv4 stack) 4 relays (2-pole NO/NC) for switching high-power AC/DC loads (250 V/5 A) 4 optical-isolated digital inputs (3-30 V) for noisy/industrial environments RS485 communication interface up to ~1200 m cable length, connecting legacy systems Project Overview: This board merges wired Ethernet connectivity via WIZnet’s W5500 with industrial I/O features (relays, opto-isolated inputs, RS485) and ESP32's wireless capabilities…

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
