Bridging Industrial Worlds: ESP32 + W5500 기반 Modbus TCP ⇄ RTU Gateway

Components

Hardware components

WIZnet parts

Project description

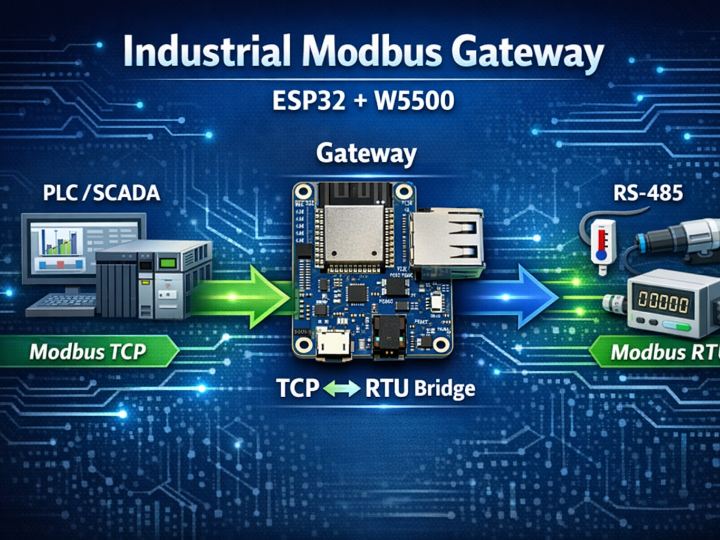

📡 Bridging Industrial Worlds: ESP32 + W5500 기반 Modbus TCP ⇄ RTU Gateway 산업 현장에서는 여전히 수많은 장비들이 RS-485 기반 Modbus RTU로 동작합니다. 하지만 상위 시스템은 점점 Ethernet 기반 Modbus TCP로 통합되고 있습니다. 이 프로젝트는 그 사이를 연결합니다. 🚀 프로젝트 개요 ESP32와 WIZnet W5500을 활용하여 Modbus TCP ↔ Modbus RTU 변환 게이트웨이를 구현했습니다. 상위 시스템: SCADA / PLC (Modbus TCP) 하위 장비: 센서, 계측기, 액추에이터 (Modbus RTU, RS-485) 중간 역할: ESP32 + W5500 Gateway 즉, 기존 설비를 교체하지 않고도 Ethernet 기반 산업 네트워크로 확장할 수 있습니다. 🧩 시스템 아키텍처 [SCADA / PLC] │ (Modbus TCP) ▼ [ESP32 + W5500] │ (RS-485 / Modbus RTU) ▼ [Power Meter / Sensor / Actuator] ⚙️ 핵심 동작 원리 Gateway는 다음과 같은 흐름으로 동작합니다: TCP…
