LabVIEWからアクセス可能なModBusデバイスを構築したい
Building a Low-Cost Modbus TCP Slave Device with STM32 + W5500
0
Components
Hardware components
WIZnet - W5500
x 1
Project description

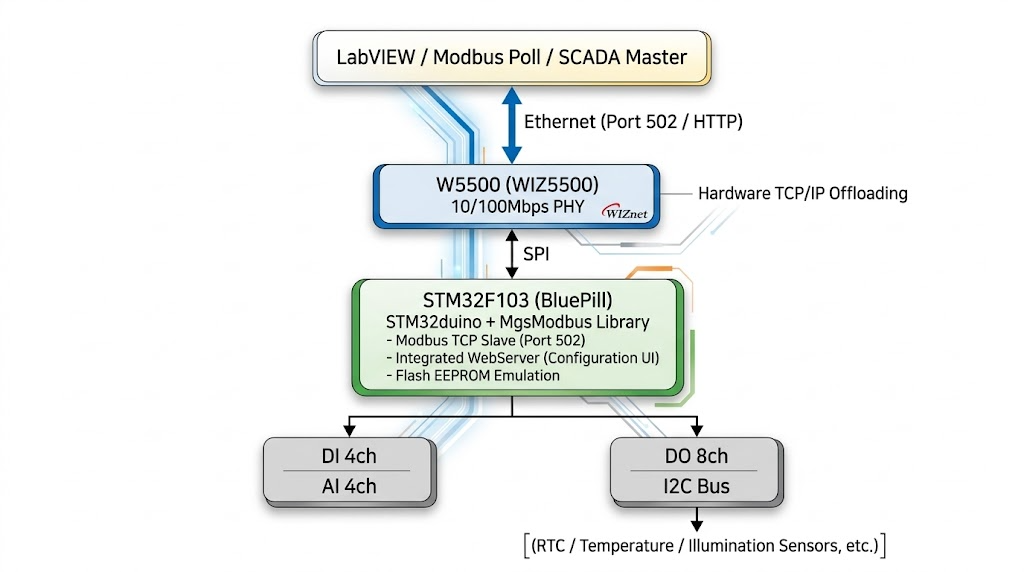

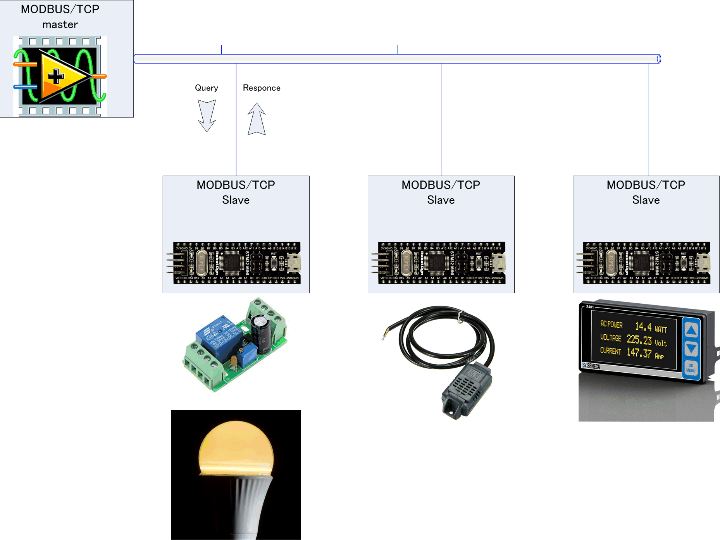

Summary This project demonstrates how to build a general-purpose I/O Slave device accessible by LabVIEW and other Modbus TCP master software, using an STM32F103 (BluePill) microcontroller and a WIZnet W5500 (WIZ5500) Ethernet controller. Thanks to W5500's hardware TCP/IP offloading, the STM32 can focus entirely on Modbus data handling and I/O control. The result is a practical industrial edge device design that also features a built-in web server for on-site network configuration. Overview In industrial automation, Modbus TCP has become the de facto standard protocol for higher-level systems…
