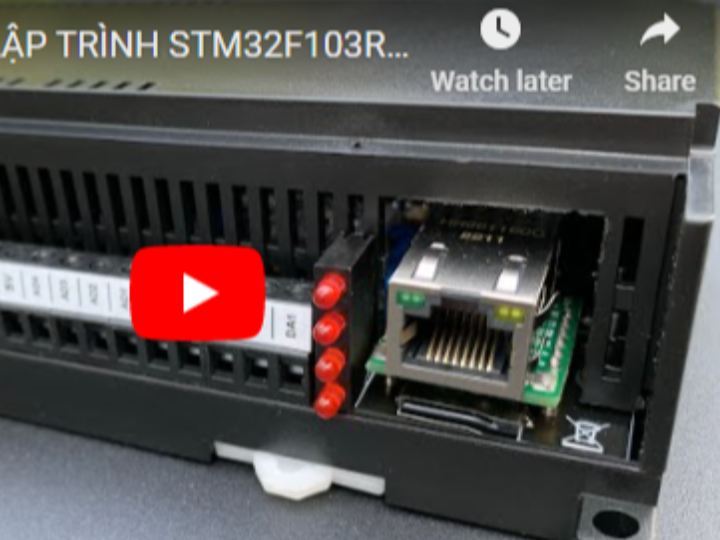

STM32F103RC PROGRAMMING MAINBOARD NEW 2022
MAINBOARD STM32F103RC is suitable for those of you running projects, just learning STM32.
Professionally designed board, standard PCB proc
0
Components
Hardware components
WIZnet - W5500
x 1
Project description
roduct information
#first. Power supply: 24VDC#2. Optically isolated input x 08 channels (Low level integrated input)#3. Analog input x 04 channels (0-10V)#4. Analog Output x 04 kênh (0-10V)#5. Output Relay x 08 kênh#6. Output Transistor NPN x 02 channels, allowing high-speed control.#7. Anti-interference and isolation RS232, RS485 interface allows connection of multiple peripherals such as HMIs, computers, devices with RTU communication#8. Memory card interface to save large amounts of data, easy to install and remove.#9. Header Uart allows connection to peripherals such as Esp32, Lora, Bluetooth to communicate with wireless devices.#ten. Header I2C allows connection to peripherals such as LCD, temperature sensor, humidity, compass. Expansion Module IO...etc..#11. The built-in siren is suitable for projects requiring auditory warning.#12 Status lights, power lights and communication lights 232, 485#13. Ethernet connection via W5500 SPI . Ethernet module#14. Real time clock (RTC), có pin 3v#15. Load code directly by RS232 or STLINK port.#16. Warranty: 1 year, exchange within the first 30 days.
