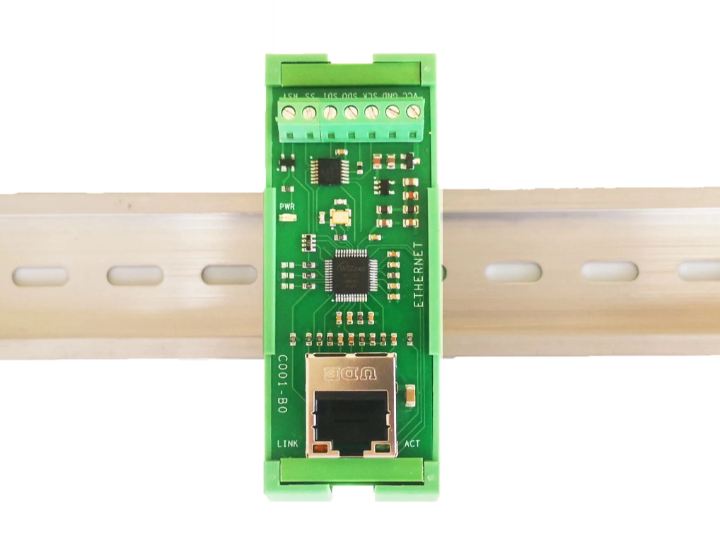

W5500 Ethernet Shield TCP/IP DIN Rail Mounting for Arduino ESP32

This ethernet module is based on the W5500, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload

WIZnet

Published November 28, 2022

Original author: Rella EngineeringOriginal source (new tab)

W5500 Ethernet Shield TCP/IP DIN Rail Mounting for Arduino ESP32

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

Description: This ethernet module is based on the W5500, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload engine. It is an Arduino compatible shield that helps makers connect DIN rail-mounted Arduino to the internet in a convenient way. Specification: Operating Power Supply 5VDC / 150mA Ethernet Controller W5500 Connection speed 10/100Mb MCU Interface 4-Wire SPI Supported I/O Logic +3.3V / +5V Dimension 34mm x 88mm x 38mm Original Link: https://www.aliexpress.com/item/1005003589665341.html

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
