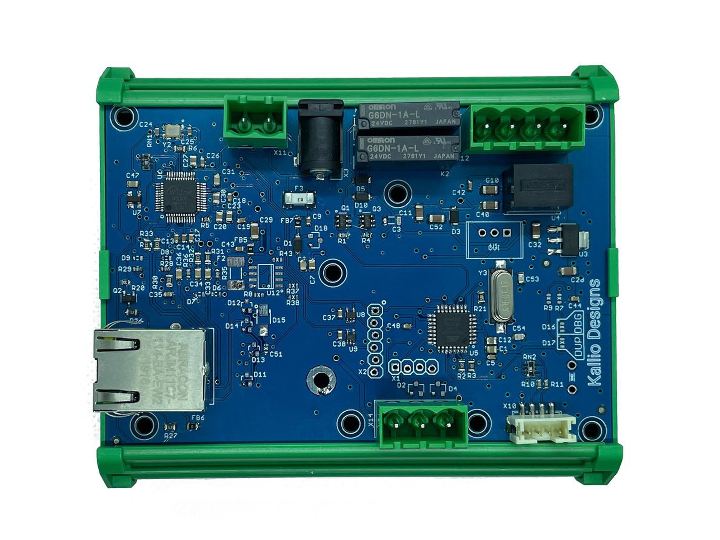

220012 TCP/IP Relay Controller

Control relays and external relay boards via wired ethernet / LAN connection. 3 Digital inputs, 2 internal relays, expandable to 130 relays.

WIZnet

Published December 29, 2022

Original author: Kallio Designs · FinlandOriginal source (new tab)

220012 TCP/IP Relay Controller

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

Product summary A device that allows reading 3 digital inputs and controlling 2 relays through TCP/IP communication. Extendable with 8 relay modules. Features TCP/IP control 2 dry-contact relays 3 Digital inputs Expandable to 130 relays 17-30 VDC operation TCP/IP to I2C bridge Original Link: https://www.tindie.com/products/kallio-designs/220012-tcpip-relay-controller
