NORVI ENET AE-06-T Modbus TCP Server

This project implements a Modbus TCP server for the NORVI ENET AE-06-T

WIZnet

Published February 20, 2023

Original author: Philipp Trenz · GermanyOriginal source (new tab)

NORVI ENET AE-06-T Modbus TCP Server

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

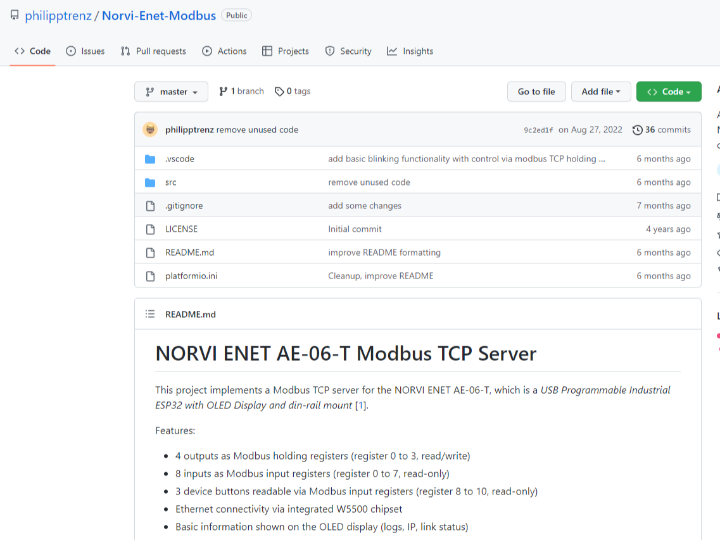

This project implements a Modbus TCP server for the NORVI ENET AE-06-T, which is a USB Programmable Industrial ESP32 with OLED Display and din-rail mount [1]. Features: 4 outputs as Modbus holding registers (register 0 to 3, read/write) 8 inputs as Modbus input registers (register 0 to 7, read-only) 3 device buttons readable via Modbus input registers (register 8 to 10, read-only) Ethernet connectivity via integrated W5500 chipset Basic information shown on the OLED display (logs, IP, link status) Original link: https://github.com/philipptrenz/Norvi-Enet-Modbus

Keep reading with a free account

Guests can read 15 projects per visit. Log in or create a free account to read the full description, open the documents and join the comments.
