Ethernet Network Module, Single Chip Microcomputer TCP IP Protocol Stack

Ethernet Network Module, Single Chip Microcomputer TCP IP Protocol Stack High Speed Durable 8 Independent Ports for DIY

WIZnet

Published September 26, 2022

Original author: Brand: Ouee · ChinaOriginal source (new tab)

Ethernet Network Module, Single Chip Microcomputer TCP IP Protocol Stack

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

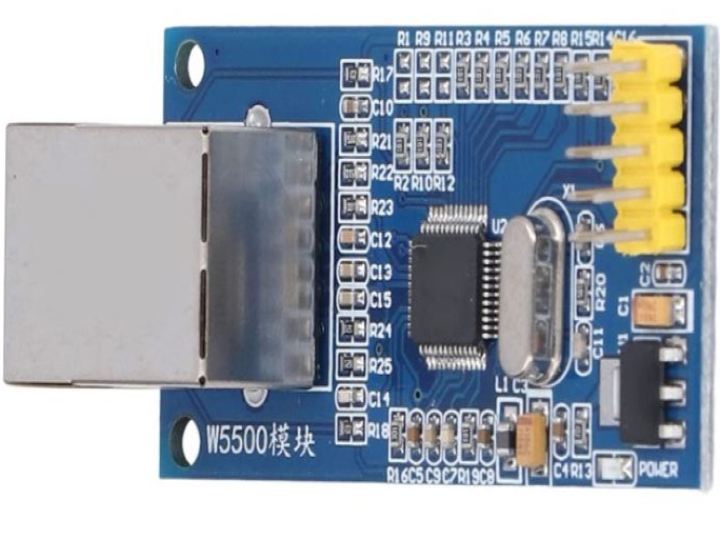

Feature: Network Module: W5500 module is an Ethernet module integrated with full hardware TCP IP protocol stack. Practical Uses: No need to write the underlying Ethernet codes to implement the TCP/IP protocol stack, support TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols, support 10/100MBPS transmission rate. Easier Working: Supports 8 independent ports to work at the same time, also supports 5V or 3.3V power supply, which is convenient to use in different single chip systems. The communication method between the module and the single chip is SPI protocol, which supports speeds up to…
