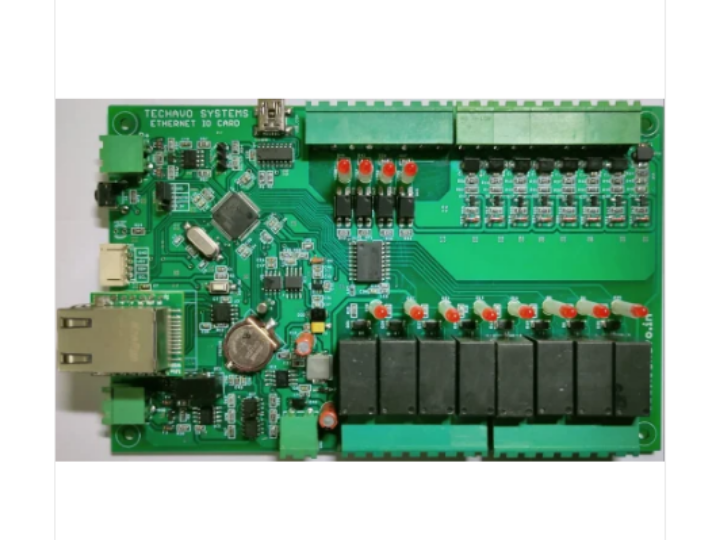

Techavo SYstems Ethernet IO Modules

Techavo SYstems Ethernet IO Modules, For Industrial, Model Name/Number: TSETH1201

WIZnet

Published January 31, 2023

Original author: Indiamart · IndiaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

Product Specification Model Name/Number TSETH1201 Usage/Application Industrial Brand Techavo SYstems Network Speed 10 / 100 Base Number Of Ports/Pins 8AI, 4DI, 8 DO, Dual Modbus Rated Voltage 12-24 V DC Flash Memory 64MB Product Type Datalogger, RTU, IO Extender Card Mounting Type DIN Rail Mount Input Impedance Greater than 10 M Ohm Warranty 2 years Processor ARM Cortex LAN 10 / 100 Base Protocols Ethernet, Modbus RTU, Modbus TCP, Modbus RTU over TCP Data Transfer Rate -10 to 70 deg C Storage Temperature -20 to 80 deg C Country of Origin Made in India
