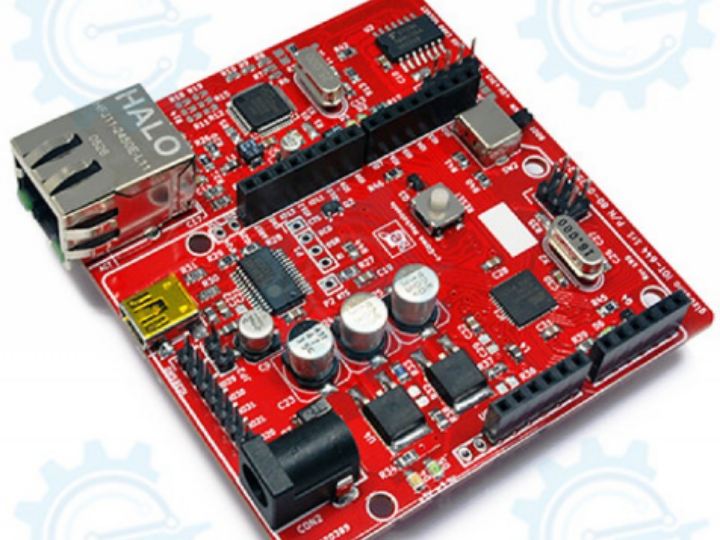

GIZDUINO IOT-644

(IOT)644 an Arduino Compatible platform with on-board 100MBps Ethernet for your IOT project. Double memory capacity ATMEGA644 + Wiznet W5500

WIZnet

Published August 30, 2022

Original author: e-Gizmo · the PhilippinesOriginal source (new tab)

GIZDUINO IOT-644

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

INTRODUCTION Our new gizDuino Internet-Of-Things (IOT)-644 an Arduino Compatible platform with on-board 100MBps Ethernet for your IOT project. Double memory capacity ATMEGA644 + Wiznet W5500 + uSD Card Reader + Standard Shield Socket. FEATURES Specifications : Power Input 7 - 9 V DC (EXTERNAL) MCU ATmega644P @ 16MHz Flash Memory 64KB (2X) RAM 4KB (2X) EEPROM 2KB (2X) USART 2 (2X) i/O 30 (10 more) Ethernet PHY: Wiznet W5500 Speed: 10/100 Mbps Hardwired TCP/IP: TCP, UDP, IPv4,ICMP, ARP, IGMP PCB Dimensions Length : 75mm Width : 79mm
