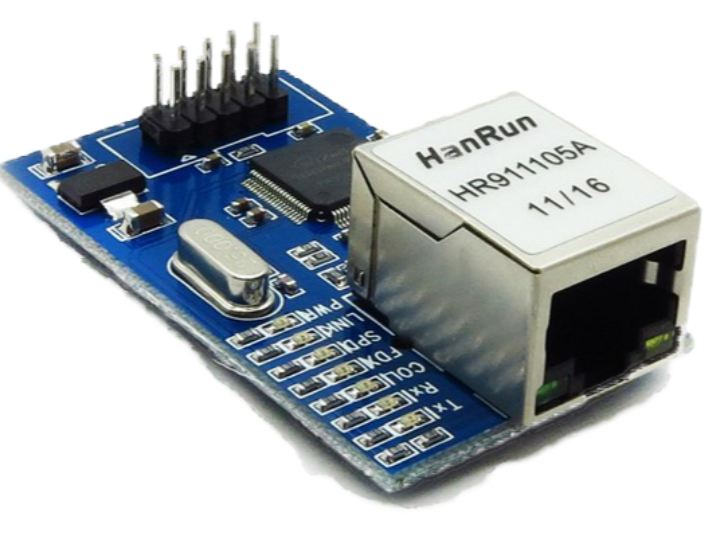

WizNet W5500 TCP/IP Module (e-Gizmo)

WizNet W5500 TCP/IP Module (e-Gizmo)

WIZnet

Published April 20, 2023

Original author: e-Gizmo · the PhilippinesOriginal source (new tab)

WizNet W5500 TCP/IP Module (e-Gizmo)

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

DETAILS

WizNet W5500 TCP/IP Module (e-Gizmo)

This product is an example of Ethernet module.
User can connect to Internet on WIZnet Platform easily.
This would be included in VAR Gallery category of WIZnet Museum.

Features

Intercommunication with both W5500 & uSD card using SPI

Easy connection to ethernet using standard RJ-45 port and it provides local network address

Integrated TCP/IP Protocol

Compatible with all gizDuino, Genuino, & Arduino Microcontroller boards

Specifications

PHYWiznet iEthernet W5500
HardwiredTCP/IP : TCP, UDP, IPv4, ICMP, ARP, & IGMP
Supply Input+5VDC
Cable typeTwisted pair
CategoryCAT5 Ethernet Cable
Connection Speed10 up-to 100mbps
On-Board peripheralsuSD card socket & Port for Wireless Module
