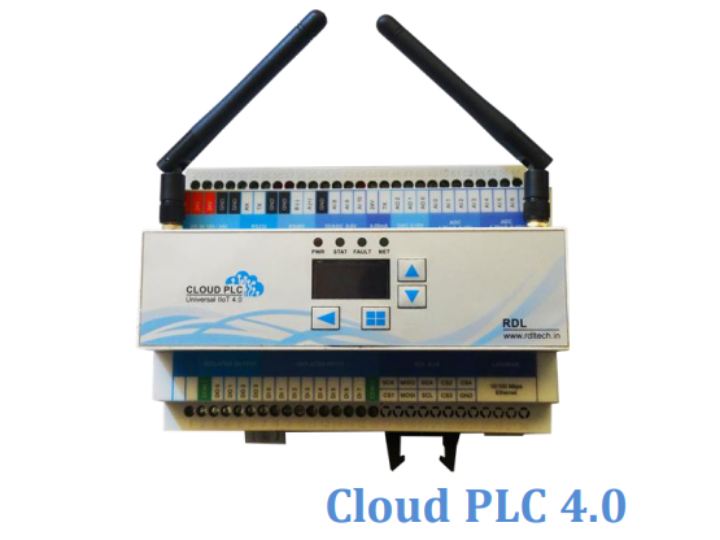

Cloud PLC 4.0
Cloud PLC 4.0 series defines a new way of transforming factories into smart/intelligent factories for efficient and easy remote monitoring
3
Components
Hardware components
WIZnet - W5500
x 1
Project description
Cloud PLC 4.0 NEXT GENERATION open source controls!
Cloud PLC 4.0 series defines a new way of transforming factories into smart/intelligent factories for efficient and easy remote monitoring and controlling the operational status of facilities such as on/off status, pressure and temperature. Cloud PLC 4.0 supporting for wide range of industrial protocols
like Modbus, MQTT, JSON, RESTful, TCP/UDP, SNMP protocol, which makes the monitoring and solution integration, easier than ever for IT engineers through open source APIs..
Benefits
Cloud PLC 4.0 can used to build the custom industrial solution for monitoring and controlling PLC and SCADA, HMI, VFD,Motors, servo, Valves, energy meter,
actuators, relays, encoder, RFID and fingerprint readers, industrial sensors and many more with below mentioned operational benefits..
- Simplified logging network as RDL Data Logger supports multiple features
- Paper-less Production environment
- Production count, rejections
- Machine availability and Downtimes
- Preventive maintenance
- Performance Forecasting
- Enable Management by IT
Application
- Production and process monitoring.
- Utilities monitoring.
- Condition monitoring.
- Environment monitoring.
- Industrial Smart grid
- Leakage detection.
- Cold storage monitoring.
- District metering.
- Water treatment.
- Generator monitoring.
- Green House.
- Warning message in case of calamities.
- Standard SCADA Applications
Features
- Digital IO:
- 24v 8x Isolated digital input
- 24v 3x Isolated Digital output
- Isolation: 3750VRMS
- Analog IO:
- 8x ADC 0-10V/ 4-20mA max.
- 10 / 16 bit ADC resolution
- 3xDAC 0-10V
- 1x 4-20ma TX
- 3xADC 0-5v
- Wired Connectivity
- RS485 MODBUS, RS232 & USB
- Ethernet 10/100Mbps, RDL Expansion Bus
- Memory
- FRAM 25KB, SD CARD 16GB
- Wireless connecvity
- Wi-Fi: 802.11 b/g/n/e/i (802.11n @ up to 150 Mbit/s) Bluetooth: v4.2 Bluetooth Low Energy (BLE) LoRa / Xbee, GPRS/GPS
- RTC
- Built-in RTC for stamped data logging
- Protocol
- TCP-IP, UDP, MODBUS, FTP, RESTFULL, JSON & MQTT
- Security
- SSL
- Power supply
- DC 12 - 24v
- Enclouser
- IP 20
- mounting: Wall / DIN Rail
- Dimension (LxWxH): 155x82x58.5
Hardware Functional Block diagram
Automated Machine Fault Alerting System
Achieve higher productivity and utilization with Industry 4.0 features of Automated Machine Fault Altering system. Enabled with Preventive Analytics using Machine Learning reduces downtime and improves efficiency. Supports Industry Standard Interfaces sensors and interfaces, protocols. Alerts variety of devices and customizable dashboards
Predictive Condition Monitoring System
Deep Analytics based system, provide insight into prevailing conditions on the Production Floor. Ingests and process data from multiple sensors to deliver actionable intelligent reports. Enable management of large work force with minimal Technical expertise.
