6x2 Antenna switch IP control

This unit reads BCD band data from two transceivers and automaticaly switches antennas with colision protection and blocking power amplifier

mayuri

Published January 02, 2023

Original author: remoteqth · GermanyOriginal source (new tab)

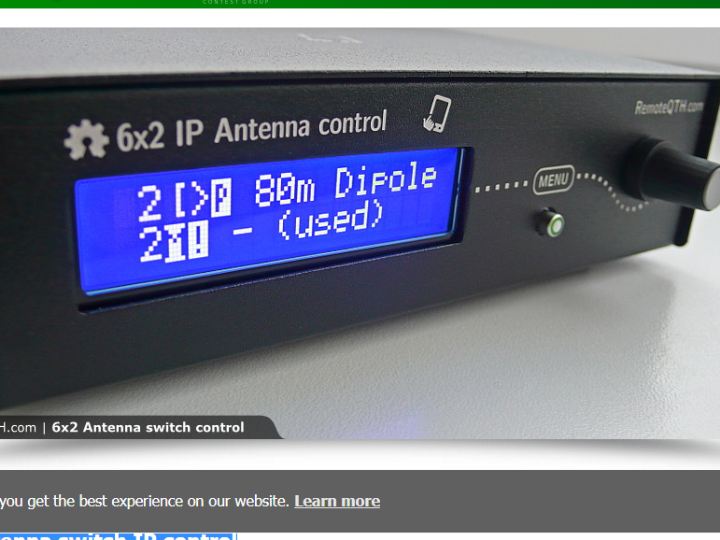

6x2 Antenna switch IP control

Components

Hardware components

WIZnet parts

Project description

This unit reads BCD band data from two transceivers and automaticaly switches antennas with colision protection and blocking power amplifier during PTT active - hot switch protection. Could be controlled also from simple web interface or manualy from front panel knob

  •  blocks two TRXs on same Antenna output.
  • Blocks during PTT - hot switch - can not change antenna output, if PTT is activated.
  • Disconnect PTT line - if collision detected.
  • Three ways of control
    • BCD band data.
    • Manually.
    • IP remote via simple web interface (if optional ethernet module instaled).
  • Outputs control LOW or HIGH - selected by internal jumper and IC - see manual.
    • ULN2803A open collector driver - switching antenna relay with grounded outputs.
    • UDN2580A supply 12V power driver - switching antenna relay with 12V power outputs.
  • Measured input DC power voltage - because the same power is used for antenna relay switching, low voltage warning is shown on the LCD screen.
  • Two TRX.
  • 6 antennas.
  • Output connector included power for switch - all in one cable.
  • BLOCKED
    • More inpunts in same time = select only one antenna for each TRX.
    • Colision between TRX and the same antenna (antenna in use).
    • Switching during PTT ON (HOT switch protection), separately for each TRX.
  • SHOW on LCD
    • Antenna number output
    • Colision
    • PTT ON
    • Name of the antenna
    • Manual(parking) or BCD input activate
  • Two line LCD, one for each TRX.
  • 12-15V DC power (13,8V recomended) .
  • 160x110x50 mm size.
  • 340g weight.
