3D Printer Controller with On-board WiFi and Ethernet

3D printer controller with a focus on network connectivity that I've been developing for the past few months.

mayuri

Published January 04, 2023

Original author: reprap · United States of AmericaOriginal source (new tab)

3D Printer Controller with On-board WiFi and Ethernet

Components

Hardware components

WIZnet parts

Project description

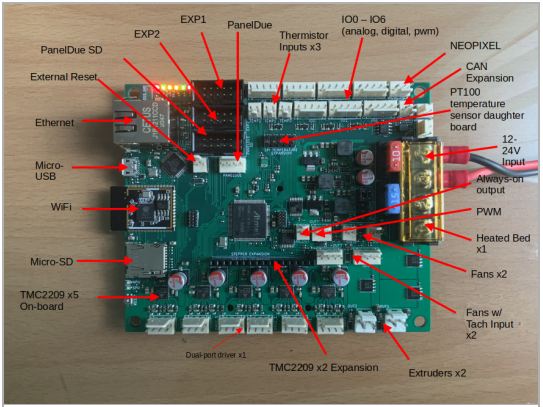

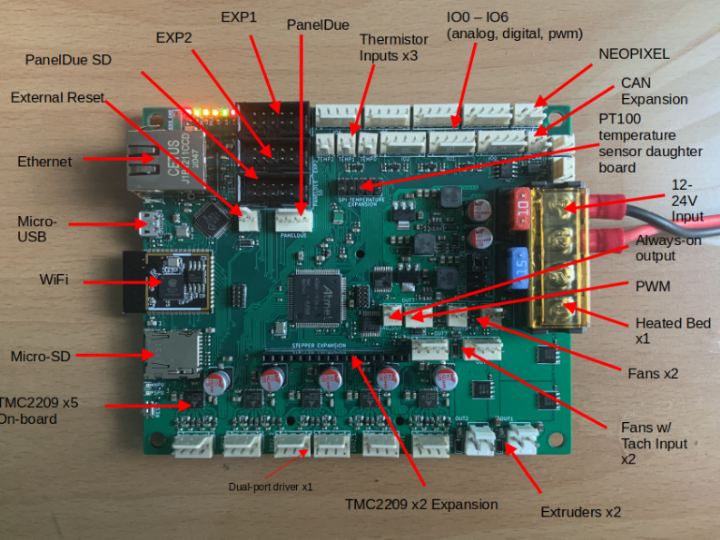

Other things to note about Luna: 1. Runs RepRapFirmware. Feature set is based on Duet 3 Mini 5+, with some changes: - On-board WiFi and Ethernet - One dual-port driver - Five on-board regulators: (1) 5V, 3A + 3.3V, 1A for core components (2) 5V 3A + 3.3V, 1A for expansions such as NeoPixel, EXP1, EXP2, etc. and (3) 12V, 3A for 12V devices - More input/outputs (IO0 - IO6) 2. Dual processor design: ESP32-S3 + SAM E5 microcontroller. ESP32-S3 is a dual-core, 240 MHZ WiFi + Bluetooth SoC with 8MB flash, 512K SRAM; handles networking, storage (SD card) and interfaces (USB, PanelDue…
