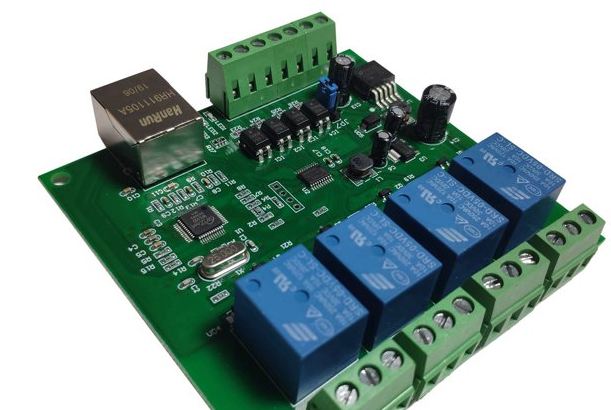

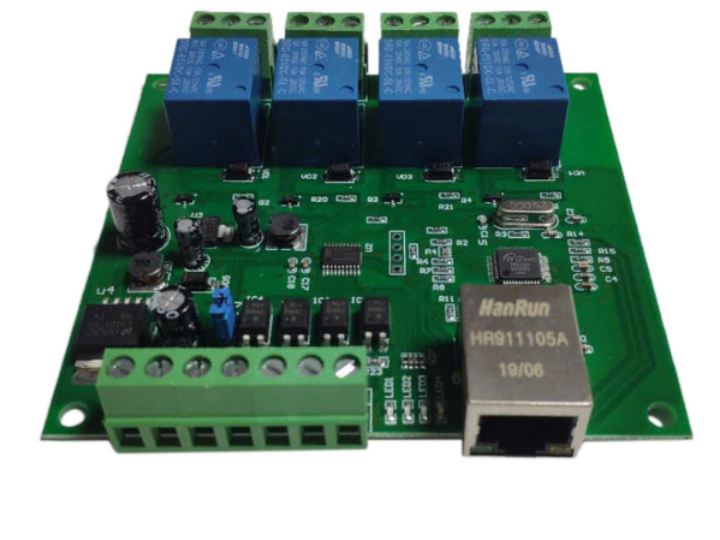

2X LAN Ethernet RJ45 TCP/IP WEB Remote Control Board with 4 Channels Relay UDP W5500 Networking
Through internet control, remote cloud by local password protection, safe and reliable
3
Components
Hardware components
WIZnet - W5500
x 1
Project description
Product details
w5500 -controller for industrial master chip
Onboard 4-way high-quality relay, relay with absorption diode circuit
The relay module can be extended up to 8 outputs
You can configure the module through the network parameters, such as the module IP address, default gateway, etc
Holding relay status before power down (configurable)
Through internet control, remote cloud by local password protection, safe and reliable
Input voltage power range: 12V - 24V
Control level input: 5V
Relay withstand voltage: 10A / 250VAC 10A / 30VDC
colour:blue
Material:Metal + pc
Package Contents:
2 x Networking Controller
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
