Solar Panel Protection System

Problem

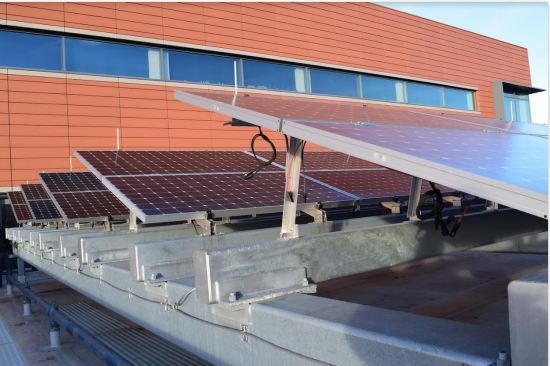

 ● 60 research solar panels

● None are in use

● They do not have ANY protection systems in place currently

Solar Panels Without Protection Systems

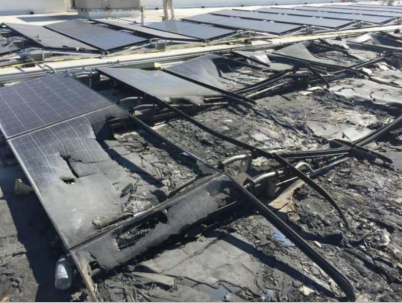

● Walmart sued Tesla due to solar panel failures.

 ● Seven roof fires at different locations.

● Detecting solar panel failures can help prevent catastrophes

Objectives

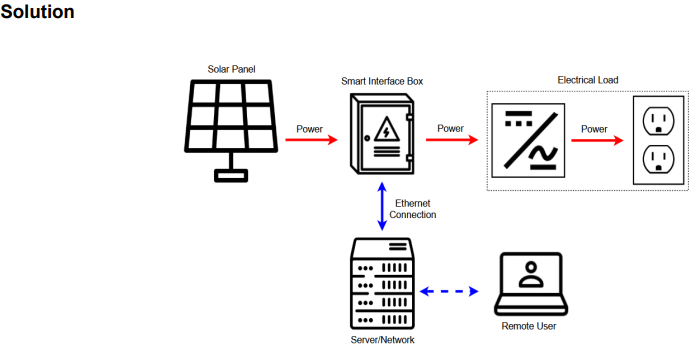

● Disconnect the solar panel if failure conditions occur

○ Over-current ○ Over-voltage ○ Over-heating

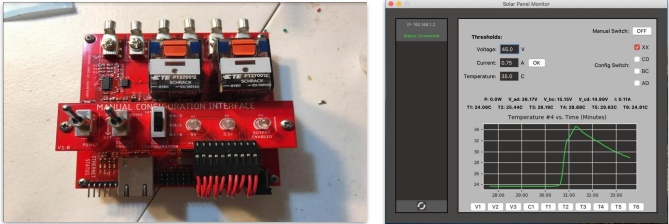

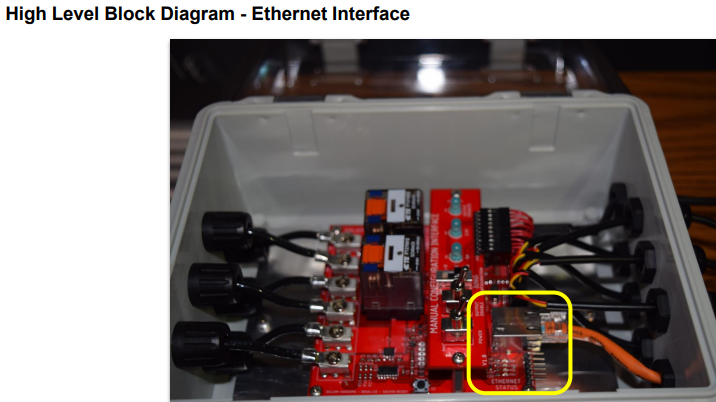

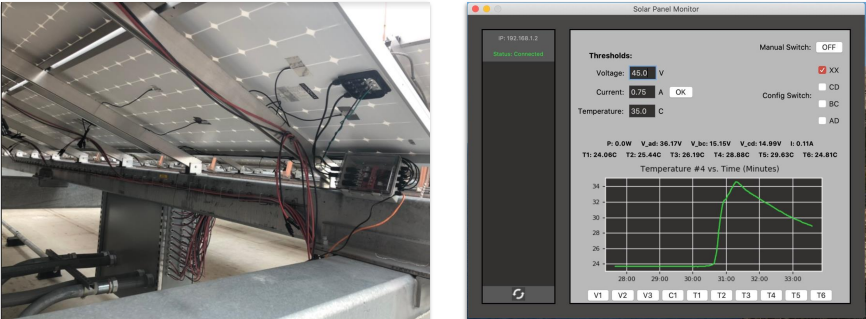

● Remote monitoring of system parameters over Ethernet ○ Voltages ○ Current ○ Power ○ Temperatures

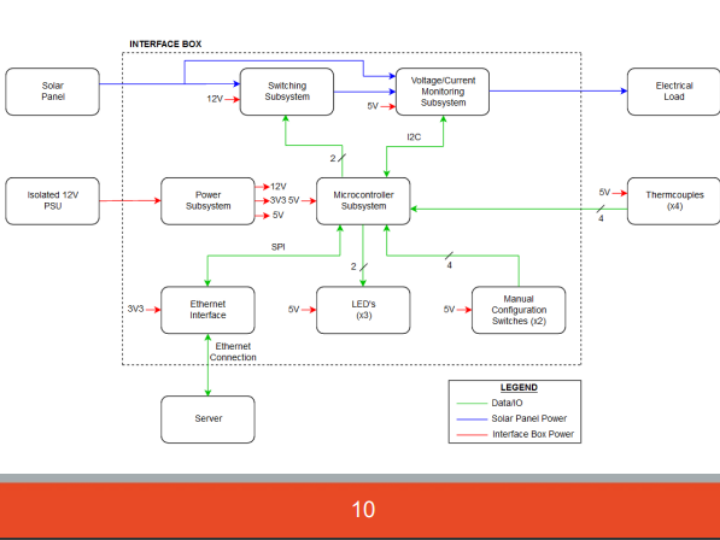

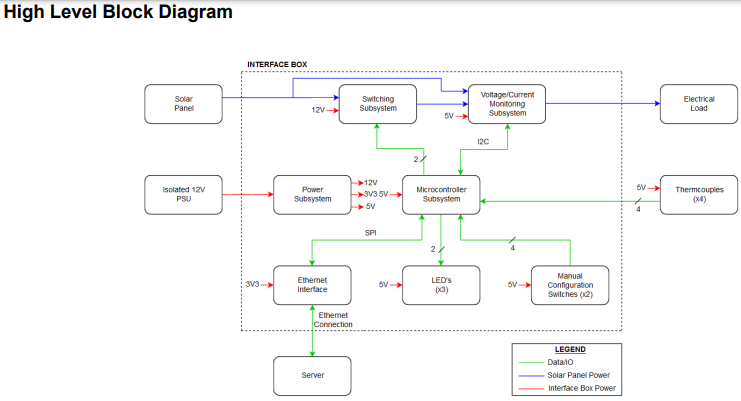

Design - Subsystem Requirements

● The switching subsystem must output the configurations shown below

● Default State - Not Connected

● Capable of delivering the maximum voltage and current of the solar panel.

Conclusion

● Project was a success! ○ Customer was more than satisfied

● Tentative plans for 60 units to be installed next Spring
