DIY board SAMD21, w5500, ULN2803 and TLC59711

DIY board SAMD21, w5500, ULN2803 and TLC59711

louis_m

Published November 30, 2022

Original author: r/electronicsOriginal source (new tab)

DIY board SAMD21, w5500, ULN2803 and TLC59711

Components

Hardware components

WIZnet parts

Project description

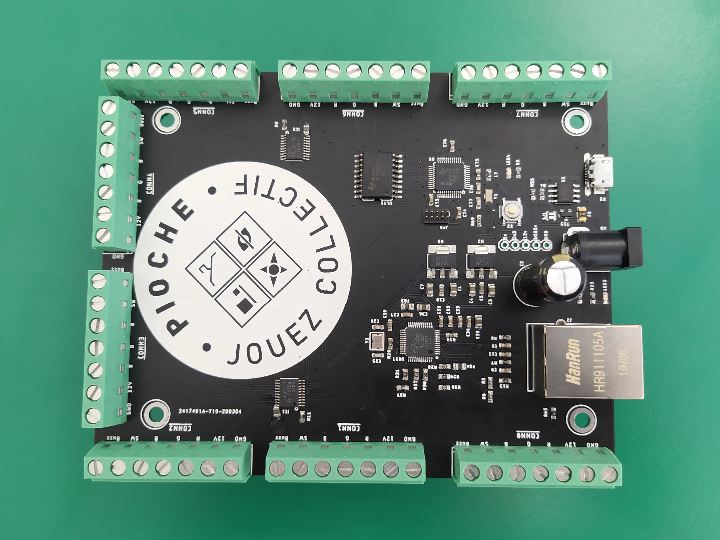

It's made around SAMD21, w5500 ethernet chip and have one ULN2803 and 2 TLC59711 led drivers. It's made to control a game with: - 12V buzzers - 12V RGB leds - bumper switches The game have hundreds of RGB bumpers spread in a large room, once one lights up with the right color you'd need to run to press it. And so on. The game engine is powered by a Node.js server communicating through UDP to the ~30 boards. Technical details: - I use a DIY reflow oven to assemble the boards. - I use uf2 bootloader - I use the arduino framework - I use platformio Don't hesitate if you have any questions.
