DMX-Unit-DIY: W5500 Art-Net node and 2-universe DMX512 controller on ESP32-S3
An ESP32-S3 DMX box that receives Art-Net over UDP 6454 through a W5500 and drives two DMX512 universes via MAX485, for about $29,33 in parts.
0
Components
Hardware components
WIZnet - W5500
x 1
GLOXIOU/DMX-Unit-DIY
Project description

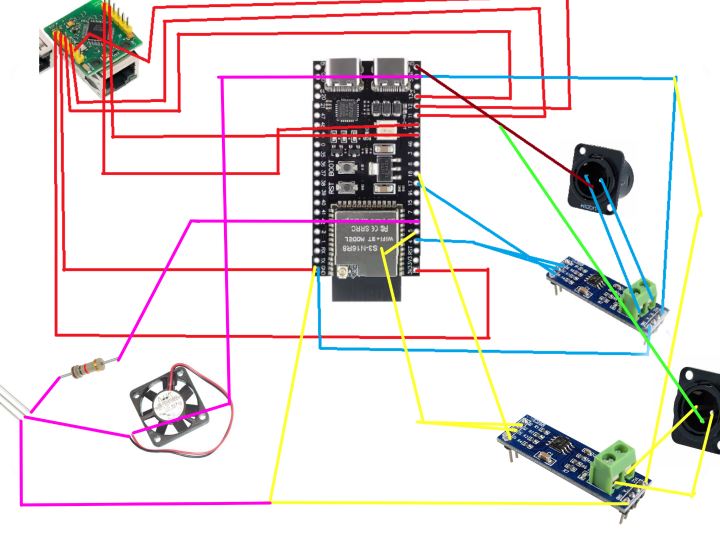

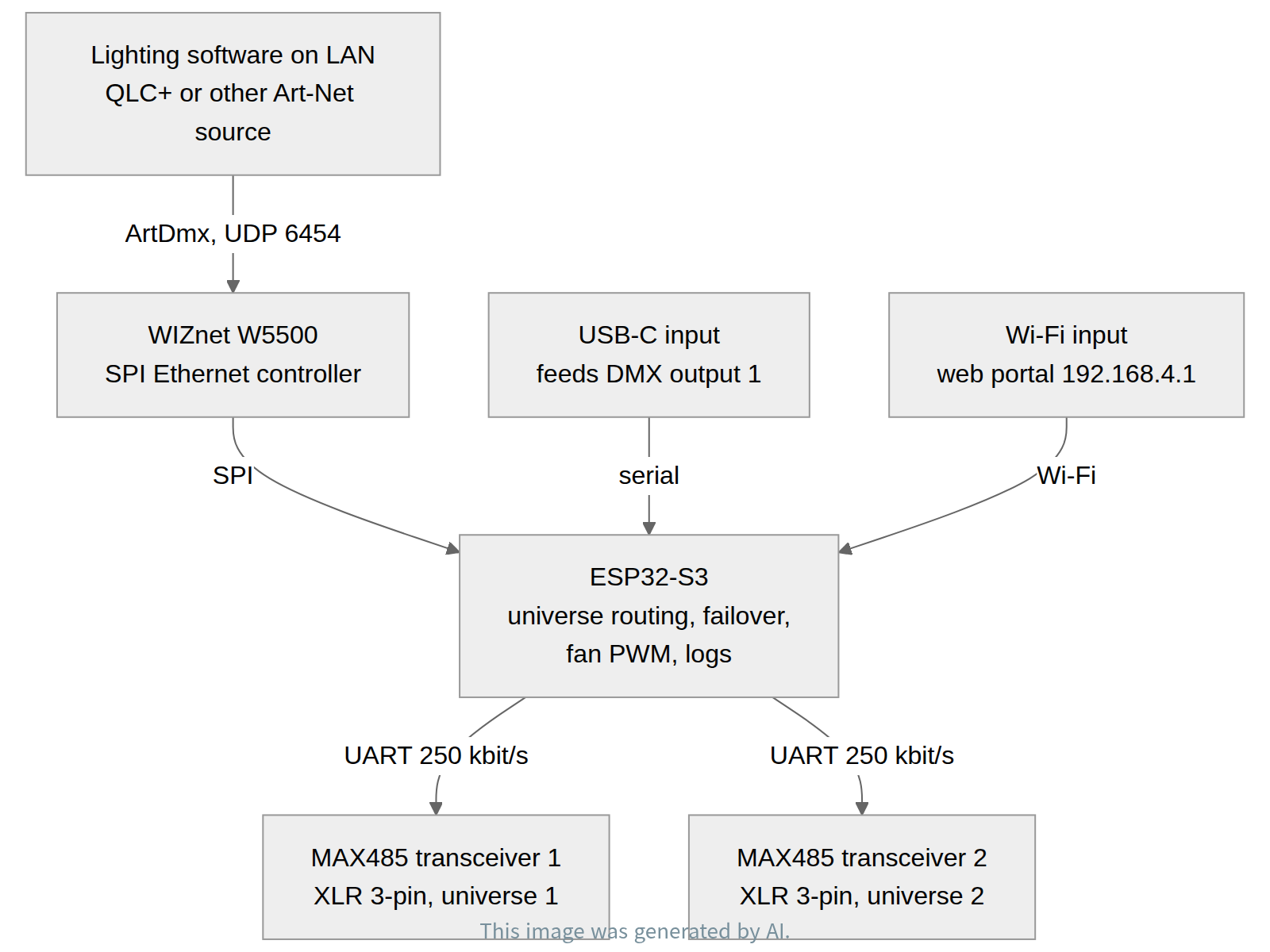

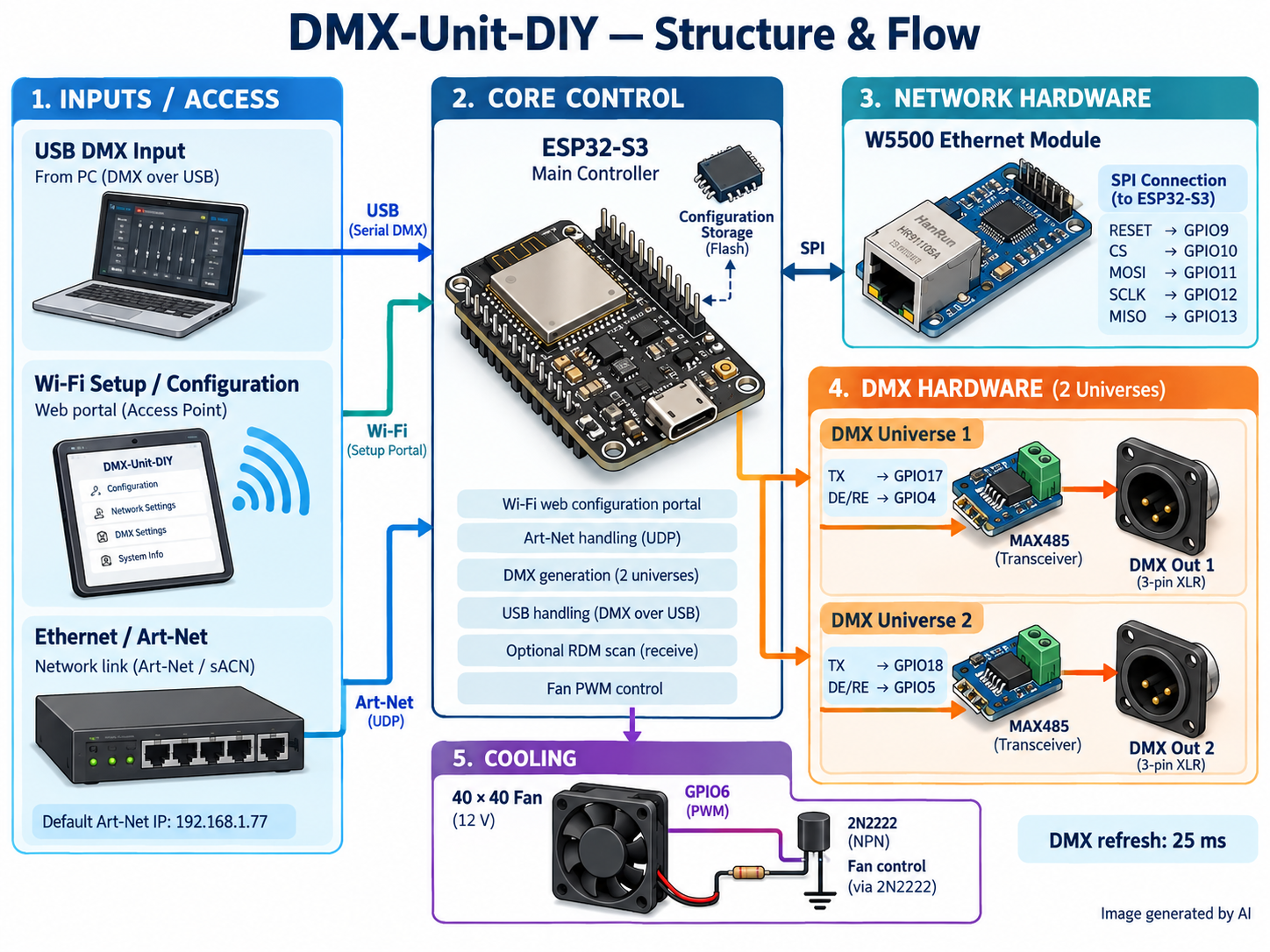

Overview DMX-Unit-DIY is a self-built stage-lighting controller box in which a WIZnet W5500 receives Art-Net over Ethernet, an ESP32-S3 decodes and routes the lighting data, and two MAX485 transceivers drive up to two DMX512 universes out of panel-mounted XLR connectors. The repository states the motivation directly: "The goal is to not pay hundred of dollars on a already existing product, and learn !", and adds that "DMX Unit DIY is also intended to be a hardware platform for a future open-source lighting-control system." Besides the Art-Net path, the unit accepts USB-C and Wi-Fi input…
