[RE] poe-addon
PoE module
0
Project description
![[RE] poe-addon](/upload/_thumb/1280/ckeditor5/258405668%5F1712010592%2Epng.jpg)

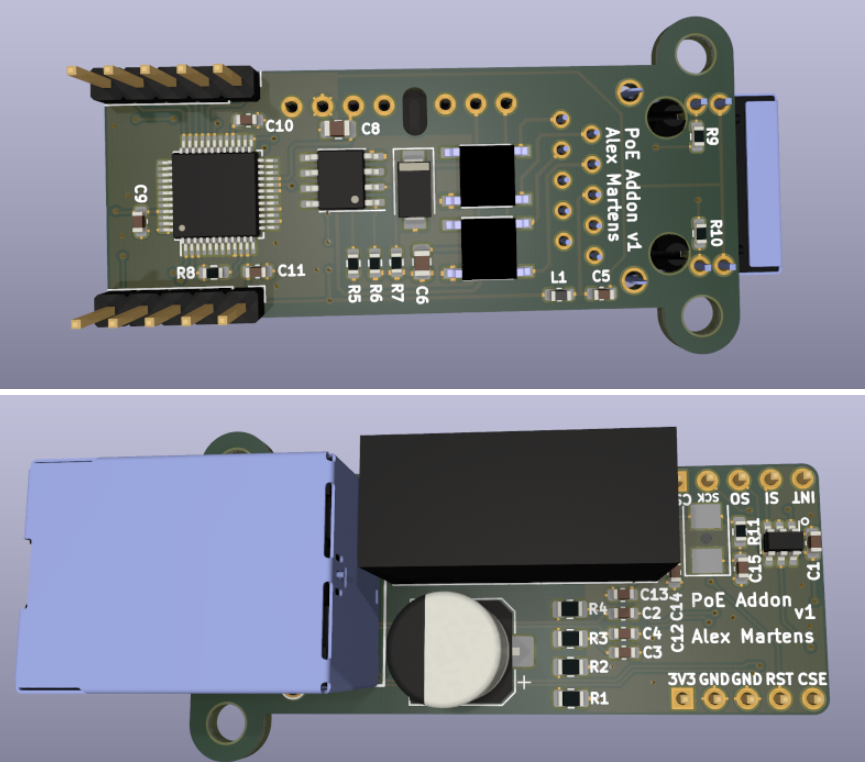

This project is a PoE module using the W5500.
Unlike the other modules, he used isolate DCDCs to avoid using transistors, which simplified the design but probably increased the unit cost quite a bit.

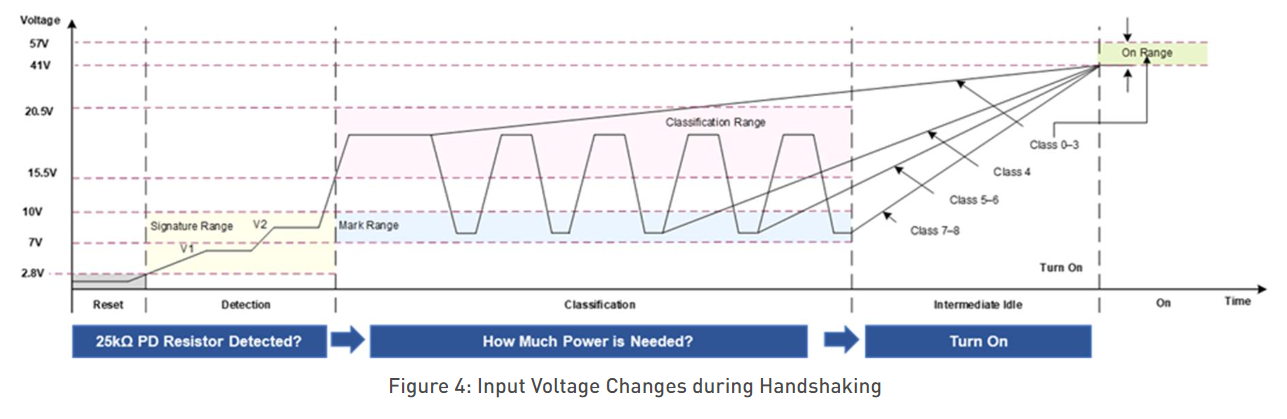

PoE relies on the PSE handshaking with the PD to determine how much power it should send once it knows the PD is connected.
![[RE] poe-addon](/upload/_thumb/1280/ckeditor5/258405668%5F1712010804%2Epng.jpg)

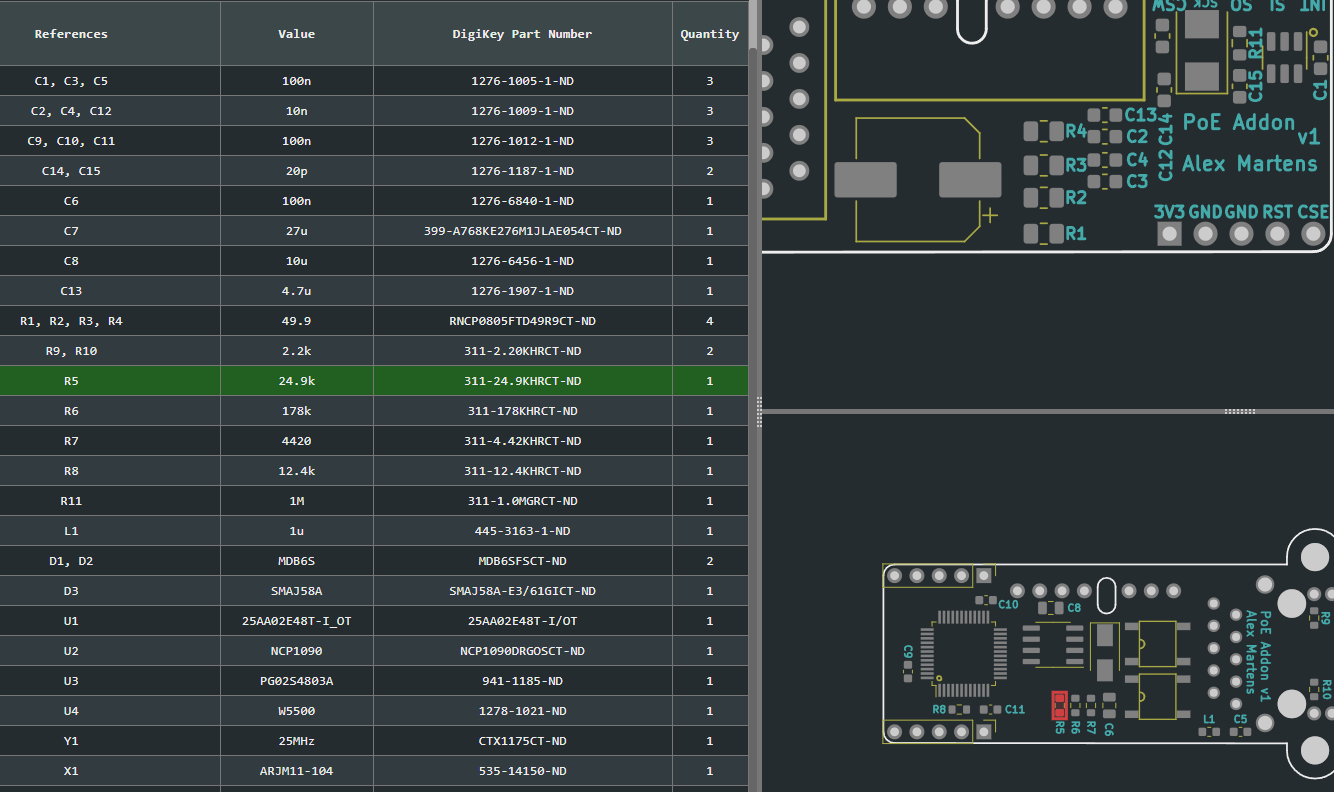

The initial PD detection is connected with a PD resistor value of 25k ohm, but the BOM list posted by the author has 24.4k ohm, so it seems to be a PoE module that supports PD detection.This project is a PoE module using W5500.
Unlike other modules, it uses an isolate DCDC and does not use transistors, which simplifies the design but probably increases the unit cost quite a bit.
PoE relies on the PSE handshaking with the PD to determine how much power it should send once it knows the PD is connected.
![[RE] poe-addon](/upload/_thumb/1280/ckeditor5/258405668%5F1712010804%2Epng.jpg)
Initial PD detection indicates that it is connected with a PD resistor value of 25k ohm, which appears to be a PoE module that supports PD detection, as the BOM list posted by the author has 24.4k ohm.
![[RE] poe-addon](/upload/_thumb/1280/ckeditor5/258405668%5F1712010902%2Epng.jpg)
