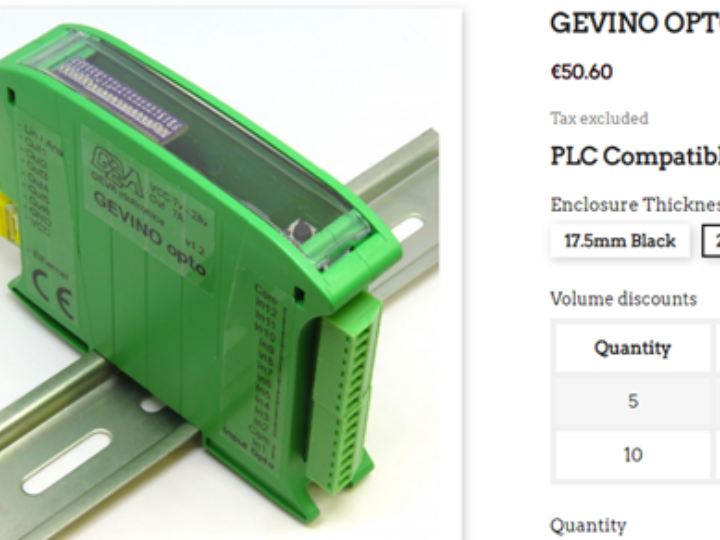

GEVINO OPTO NPN - PLC
12 opto-insulated double-polarity inputs, 6 NPN 6F mosfet outputs, SD card, LIN bus
7
Components
Hardware components
WIZnet - W5500
x 1
Project description
Arduino Zero compatible Supply, inputs, outputs 7V /30V 12 opto-isolated inputs, without polarity, with 2 common 6 NPN Mosfet Output 30V 7.6A, with protection diode 1 analogue input 4-20mA / 1V / 3.3V 1 RS485 port with which to parallel up to 255 gevini, or m-bus, or other. On the front, behind the flap:: SD card micro USB-C Led inputs, outputs, serial, power Reset button Optional: Ethernet RJ45 W5500 WiFi ESP01 / ESP05 Bluetooth SPP-C / HC08 Modem GSM SIM800 / SIM808 GPS IO-Link CAN Bus LoRa 433Mhz ADS51115 Module 16 Bit DAC RTC DS3231 FRAM I2C 64Kbyte CRYPTO ATECC508A-SSHDA 48 Mhz, 32-bit…
