NUCLEO+W5500智能家居网关资料共享

A design of NUCLEO + W5500 smart home gateway module.

chen

Published September 01, 2022

90 UCC

1 WCC

12 VAR

Original author: 通宵敲代码 · ChinaOriginal source (new tab)

NUCLEO+W5500智能家居网关资料共享

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

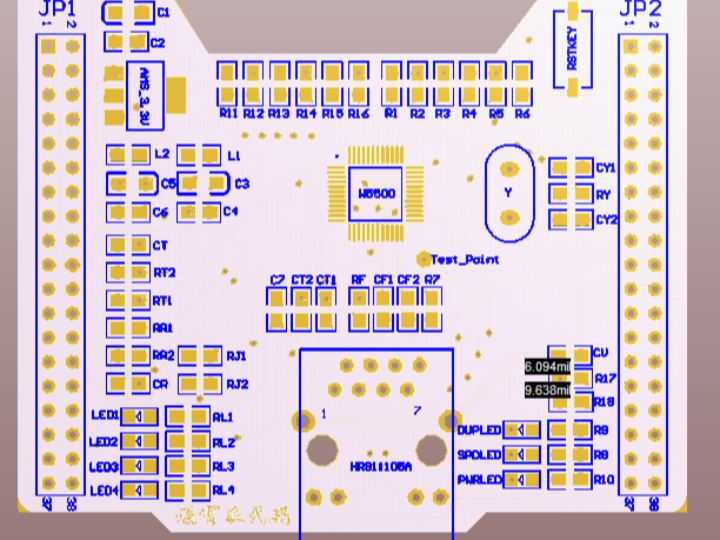

前段时间构想的智能家居网关，PCB绘制完成，已经发去打样了！ 采用的NUCLEO+W5500方案，使用SPI1接口通信，10M/100M自适应网络！ 板子是用的白油蓝字，跟NUCLEO很配哦！ 共享一下相关的资料，大家一起研究啊！ 感兴趣的可以跟帖报名，留下联系方式， 板子做回来后会送几块出去！ 先上板子的原理图，PCB没做验证，就先不传了， NUCLEO_W5500.pdf (265.49 KB) 扩展板相关的资料 STM32_NUCLEO用户手册.pdf (1.51 MB) W5500_高清晰中文数据手册.pdf (1.35 MB) HR911105A_datasheet.pdf (1008.19 KB)
