EtherMega2 (an Arduino-compatible board based on the existing Arduino Mega2560 and W5500)

EtherMega2

Copyright 2011-2018 Freetronics Pty Ltd www.freetronics.com.au

The EtherMega2 is an Arduino-compatible board based on the existing Arduino Mega2560, but with improvements and updates for features and ease of use. It also includes on-board Ethernet with PoE (Power-over- Ethernet) support.

Features:

• High-efficiency switchmode power supply (input voltage 7-28Vdc)
• Micro-USB Connector
• microSD card slot

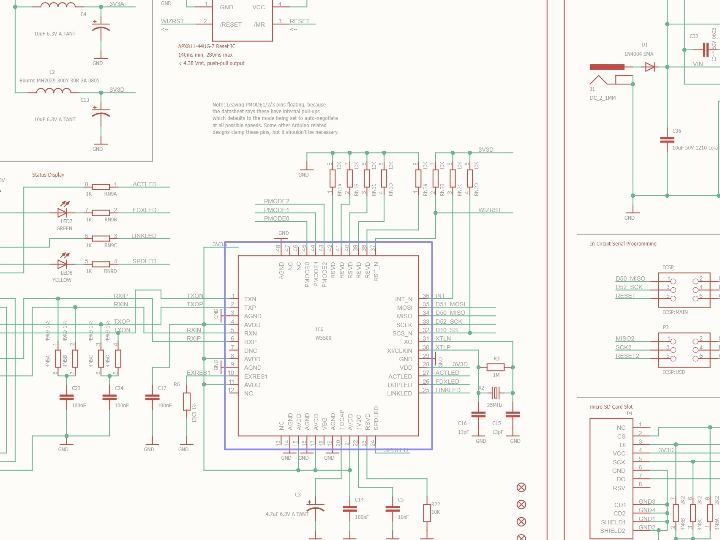

• 10/100 Ethernet using the Wiznet W5500 chip
• Overlay guide where you need it (both top and bottom)
• D13 pin works for everything

You can learn more at:

https://www.superhouse.tv/em2

INSTALLATION

The design is saved as an EAGLE project. EAGLE PCB design software is available from www.cadsoftusa.com free for non-commercial use. To use this project download it and place the directory containing these files into the "eagle" directory on your computer. Then open EAGLE and navigate to the project.

DISTRIBUTION

The specific terms of distribution of this project are governed by the license referenced below.

LICENSE

This work is licensed under the Creative Commons Attribution-Share Alike License.
To view a copy of this license, visit

http://creativecommons.org/licenses/by-sa/3.0/
http://creativecommons.org/licenses/by-sa/3.0/legalcode

or send a letter to

Creative Commons
171 Second Street, Suite 300
San Francisco
California, 94105
USA

The "license" folder within this repository also contains copies of the licences referenced above.

CREDITS

The EtherMega was designed by Jonathan Oxer (jon@freetronics.com) and Marc Alexander (marc@freetronics.com) based on previous work by the Arduino team (www.arduino.cc/playground/Main/People) which includes:

• Massimo Banzi
• David Cuartielles
• Tom Igoe
• Gianluca Martino
• David A. Mellis
