[W5500] SuperHouse EtherUNO

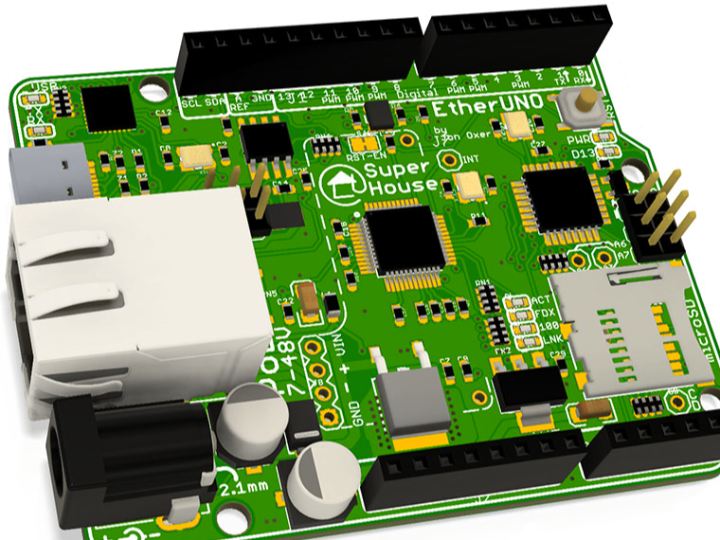

EtherUNO is an Arduino-compatible board with on-board Ethernet, PoE support, USB-C socket, and uses the W5500 Ethernet controller.

bruno

Published September 03, 2023

Original author: SuperHouseOriginal source (new tab)

[W5500] SuperHouse EtherUNO

Components

Hardware components Software Apps and online services

WIZnet parts

Project description

EtherUNO - Arduino Compatible Board with Ethernet Support The EtherUNO is an innovative board that is 100% compatible with Arduino, based on the Arduino UNO reference design, but enhanced with several updates and features to facilitate usage, cost-efficiency, and getting started. One of the notable features includes an on-board Ethernet with PoE (Power-over-Ethernet) support. Additionally, it uses a USB-C socket for connection. Key Features: LEDs visible on the edge USB-C Connector I2C MAC address ROM Overlay guide on both top and bottom D13 pin versatile functionality RX pin biased Mounting…
