Complete Ethernet module production by connecting W5500 to STM32H7 100-pin MCU
Designing an Ethernet Module by Connecting a W5500 to an STM32H743VIT6
1
Components
Hardware components
WIZnet - W5500
x 1
STMicroelectronics - STM32H743
x 1
Project description

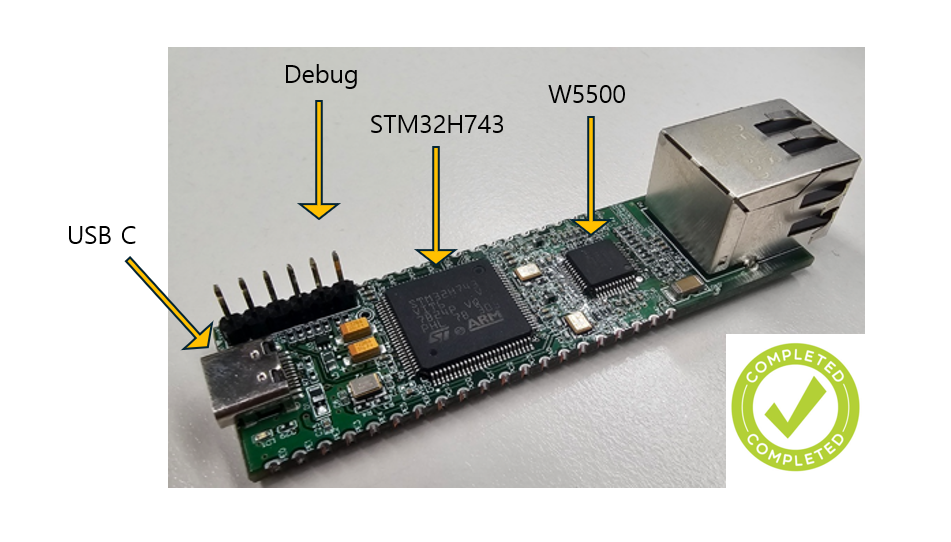

Completed!!! (Applause~) It was quite a journey putting everything together, but I finally have the finished product. Finished Development Board (Image) I'll wrap up the article by covering some details that were not mentioned in the previous part. In this design, not only was it my first time working with an MCU, but it was also my first time incorporating a USB Type-C connector. The reason for choosing a USB Type-C connector is due to the shift towards USB Type-C cables as the standard, driven by the convenience for users who predominantly use such cables for their smartphones…
