NUCLEO-F030R8 W5500

Tinkering with WIZnet W5500 ethernet chip using an STM32F030R8 NUCLEO board.

WIZnet

Published September 30, 2022

Original author: John Vedder · United States of AmericaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

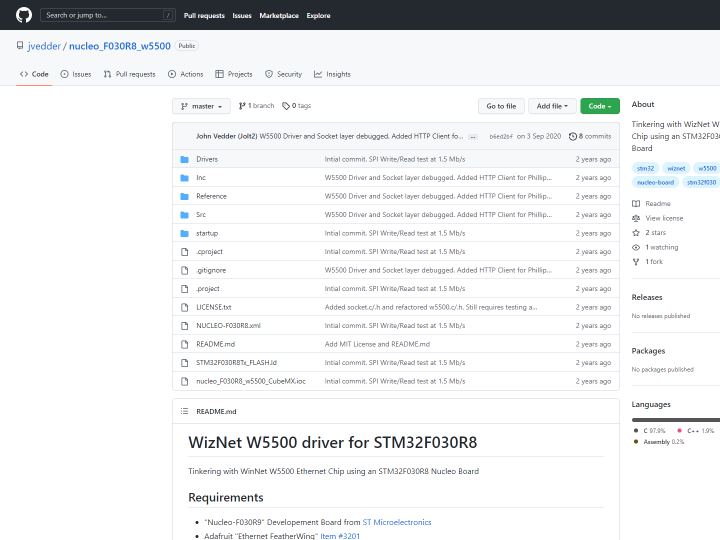

WIZnet W5500 driver for STM32F030R8 Tinkering with WinNet W5500 Ethernet Chip using an STM32F030R8 Nucleo Board Requirements "NUCLEO-F030R9" Developement Board from ST Microelectronics Adafruit "Ethernet FeatherWing" Item #3201 Eclipse CDT with "System Workbench for STM32" from openstm32.org Serial Port Terminal (PuTTY, TeraTerm or equivalent). Setup Connect FeatherWing GND to NUCLEO CN7 Pin 8 (GND) Connect FeatherWing 3V to NUCLEO CN7 Pin 12 (+3V3) Connect FeatherWing MOSI to NUCLEO CN10 Pin 26 (PB15) Connect FeatherWing MISO to NUCLEO CN10 Pin 28 (PB14) Connect FeatherWing SCK to NUCLEO…
