Ziinode Ethernet development board

Components

Hardware components

WIZnet parts

Project description

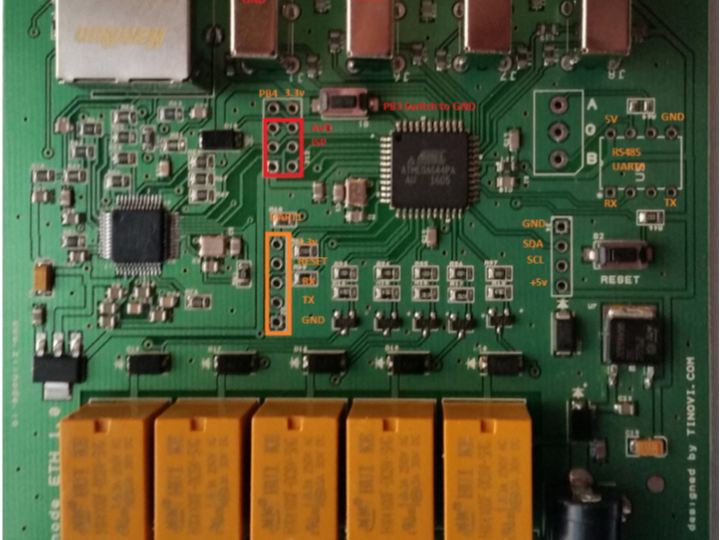

DETAILS Ziinode ethernet board is has total 8 analog/digital inputs accessible via 4 connectors 2 inputs each and 5 relay outputs. It is based on ATMEGA644PA-AU MCU and WIZnet W5500 ethernet chip. Inputs has USB-A type connector male socket each having access to 2 ATMEGA644PA-AU analog IO pins (PA0-PA7) and +5V power and ground. USB A-Type connector is very flexible. It allows to directly plug in PCB board with sensor adapter on it. Also can be used for custom outputs. Currently we have adapted DTH11 or DTH22 humidity and temperature sensors as well as popular DS18B20 digital temperature and…
