W5500 IO MODULE

Components

Hardware components

WIZnet parts

Project description

INTRODUCTION

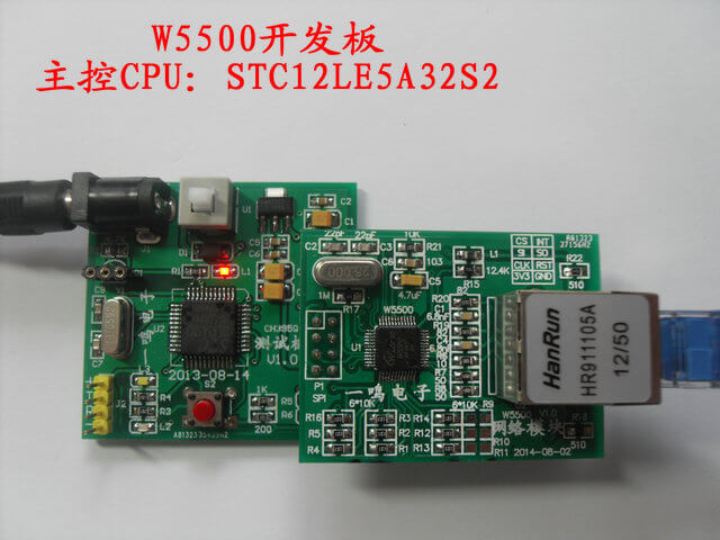

The development board is based on the W5500 network built-in STC12LE5A32S2 high-performance single-chip microcomputer development board single-backplane and network moduleThe two parts split. W5500 Features: W5500 W5500 Integrated TCP / IP stack, 10/100 Meter Ethernet Data Link Layer (MAC) Physical Layer (PHY), possibly enabling users to connect to an expansion network connection Using a single chip with their application.

FEATURES
  • Supported hardware TCP / IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Support 8 independent ports (sockets) simultaneously
  • Support power drop mode
  • Support network wake-up call
  • Supports high-speed serial peripheral interface (SPI mode 0, 3)
  • Internal 32-Kbyte Transceiver Cache
  • Embedded 10 BaseT / 100 Basetx Yes Ethernet Physical Layer (PHY)
  • Support auto-negotiation (10/100 based full duplex/half duplex)
  • IP fragmentation not supported
  • 3.3 volts operating voltage, 5-volt pressure I / O signal port;
  • LED status display (full duplex / anti-duplex, network connection, network speed, active)
