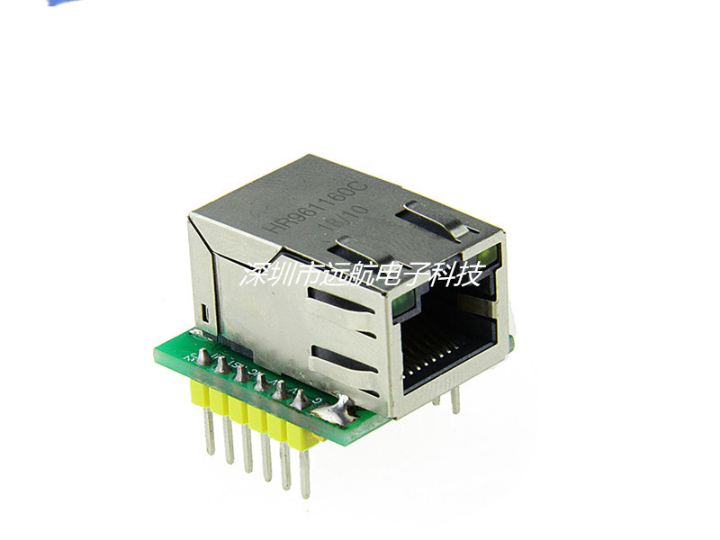

W5500 Ethernet module TCP/IP stack SPI interface Ethernet module compatible with WIZ820io

Components

Hardware components
W5500

WIZnet - W5500

x 1

WIZnet parts

Project description

FEATURES 80MHz high-speed SPI interface Built-in hardware TCPIP protocol stack, users almost no need to master the complex network protocol knowledge Support up to 8 Socket connections Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol Integrated data link layer, physical layer Support power off and wake up Support high-speed serial peripheral interface (SPI mode 0-3) Internal 32K byte transceiver cache Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY) Support for automatic negotiation (10/100-based full duplex/half duplex) IP sharding is not supported 3.3v working voltage, 5V…
