USR-ES1 : W5500 Ethernet module hardware TCP/IP

Components

Hardware components

Project description

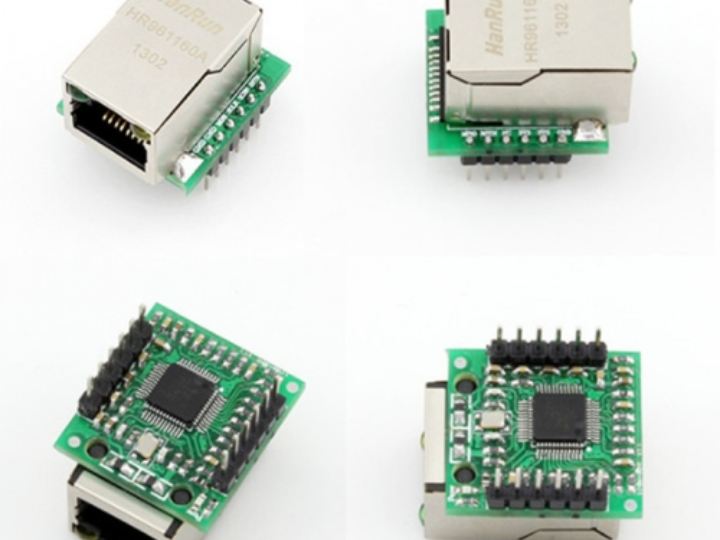

DETAILS USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of +3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable +3.3V. It is basec on WIZnet W5500 Ethernet chip. Function Features High speed SPI interface 80MHz Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge Supports up to 8 Socket …. For more information Sales : AliExpress Source: http://wizwiki.net/wiki/doku.php?id=products:w5500:start
