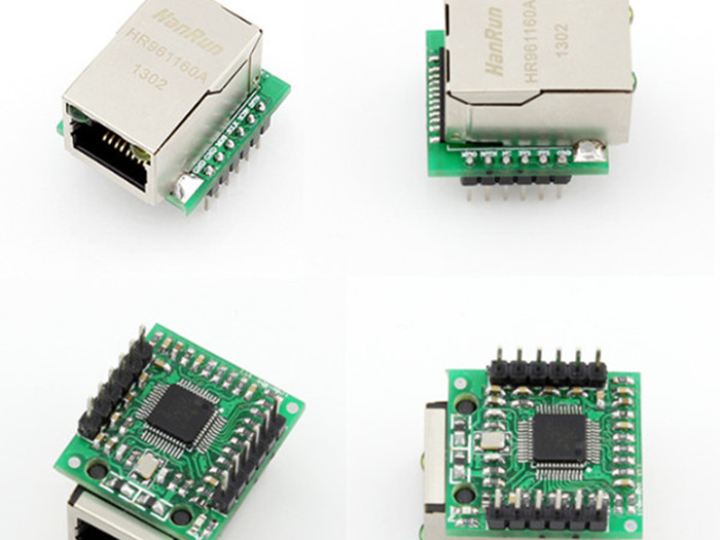

Serial port to Ethernet module W5500 hardware TCP/IP stack SPI interface Ethernet to SPI

Components

Hardware components

Project description

INTRODUCTION Wiznet embedded W5500 chip,80MHz high-speed SPI interface. Built-in hardware TCPIP protocol stack, users almost no need to master the complex network protocol knowledge. Support up to 8 Socket connections. Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol. Integrated data link layer, physical layer. Support power off and wake up. Support high-speed serial peripheral interface (SPI mode 0~3). FEATURES Functional features 1.80mhz high-speed SPI interface; 2. Built-in hardware TCPIP protocol stack, users almost no need to master complex network protocol knowledge; 3. Support…
