SC1 STM32F103C8T6 ARM HIKIT development board smart home W5500 Ethernet network module

WIZnet

Published April 26, 2023

Original author: hikit · ChinaOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

DETAILS

HIKIT SC1 is a highly cost-effective development board, but it is also the smart home control center with scalability, with highly practical nature of open source hardware.

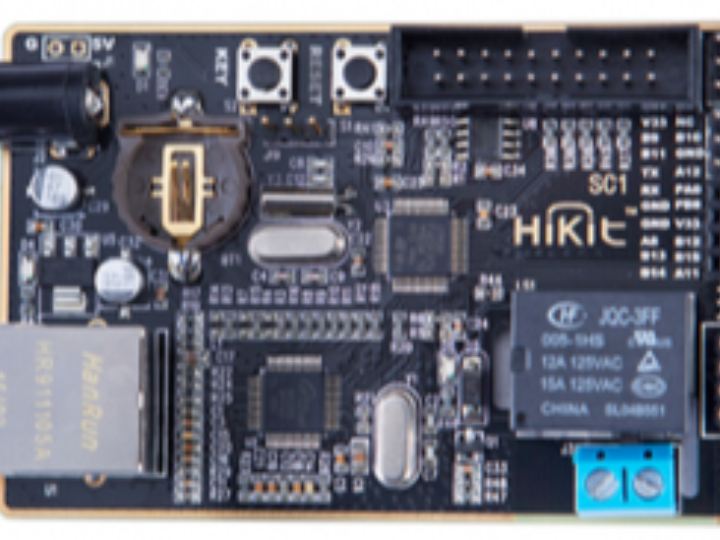

SC1-board device rich: by the master STM32F103C8T6, W5500(Hardwired TCP/IP chip from WIZnet, Korea), power relays, button, LED, RTC battery holder, JTAG programming port, RJ45 and other components.

HIKIT SC1 Pack :

1. HIKIT SC1 development board (excluding button batteries)

2. USB Power

3. User ID and product distribution HIKIT MAC address

4. User Application
