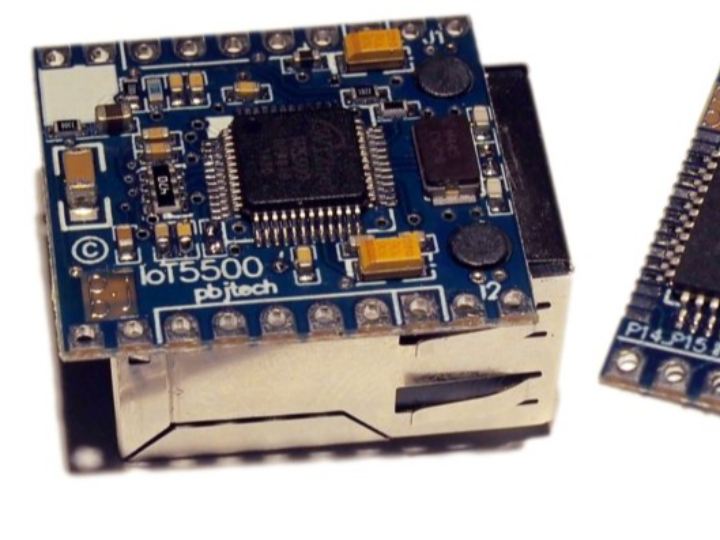

IoT5500 LanJack

The Internet of Things embedded Ethernet connectivity module IoT5500 comes in a very compact footprint, barely any larger than the Ethernet socket. As the base module it can be connected directly to a host system via SPI or with the optional CPU+SD thin-stack module becomes a network server offloading the burden of network operations as a smart peripheral. Even more importantly too is that is very cost effective even when compared to many serial to Ethernet only solutions alone.

Based on the WIZnet W5500 hard-wired TCP/IP Ethernet chip the module is both compact and easy to interface to via SPI and is footprint compatible with the older W5200 based WIZ820io module.

IoT5500 Features

• WIZnet W5500 with eight hard-wired TCP/IP sockets
• Simple 4-wire SPI interface
• 32kB on-chip buffers
• Through hole or SMD PCB flush mounting (0.8mm substrate)
• 1″ x 0.9″ x 0.67″ deep
• 10g (13g with +P8)
