HS-NM5500A
The HS-NM5500A module integrates the W5500 with the necessary peripheral devices on a single circuit board to provide customers with conveni
1
Components
Hardware components
WIZnet - W5500
x 1
Project description
INTRODUCTION

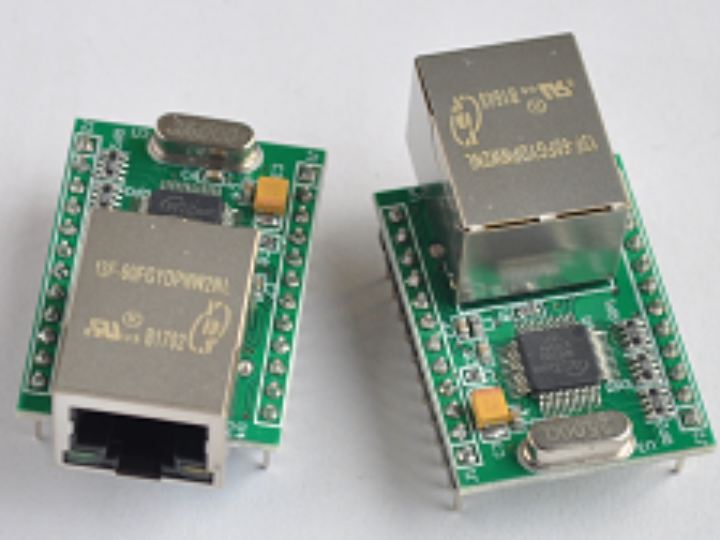

HS - NM5500A The hs-nm5500a module integrates the W5500 with the necessary peripheral devices on a single circuit board to provide customers with convenient applications. 1. It maintains all functions and performance of W5500; 2. Draw the interface between W5500 and MCU (SPI interface) through the threading; 3. Rj-45 internal integrated network transformer, the network cable can be directly connected to the module; 4. The indicator light on rj-45 can indicate the Ethernet connection status of W5500; 5. Dc 3.3v power supply; 6. Strict aging test ensures high quality of products.
