HS-EVBW5500/STM32R

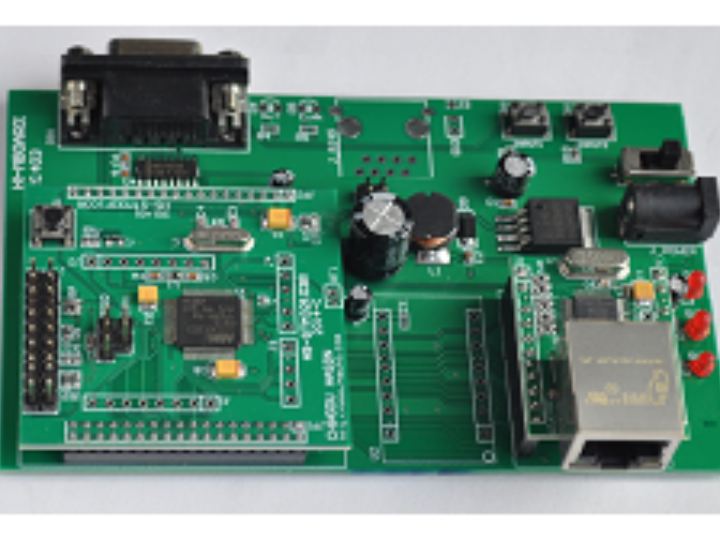

Hs-EVBW5500 /STM32R is an evaluation board specially designed for W5500.
1
Components
Hardware components
WIZnet - W5500
x 1
Project description
INTRODUCTION Hs-EVBW5500 /STM32R is an evaluation board specially designed for W5500. The CPU adopts the most widely used STM32F103R8 of ST company. SPI bus interface of STM32F103R8 is used to connect with W5500. To facilitate customer testing, hs-nm5500a module is connected to the evaluation board FEATURES Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE - Supports 8 independent sockets simultaneously - Supports Power down mode - Supports Wake on LAN over UDP - Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3) - Internal 32Kbytes Memory for TX/RX…
