GEVINO Civile

Arduino Compatible PLC with Ethernet Module

WIZnet

Published April 04, 2023

694 UCC

229 VAR

Original author: GEVA · ItalyOriginal source (new tab)

Components

Hardware components

WIZnet - W5500

x 1

WIZnet parts

W5500 Datasheet

Project description

INTRODUCTION

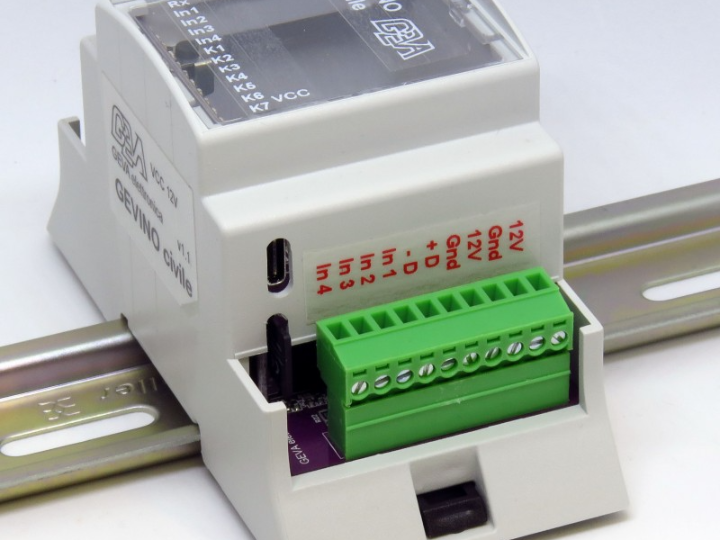

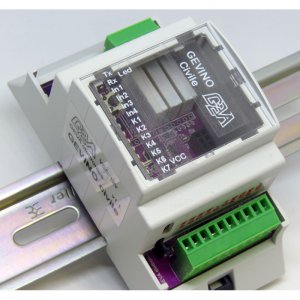

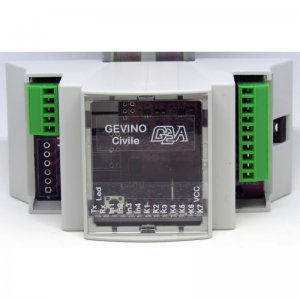

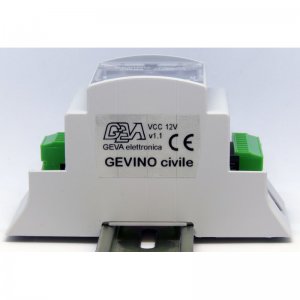

The GEVINO Civile is the Arduino based PLC, nevertheless it has excellent characteristics.

FEATURES

Spec.

Power 12V
3 relays 250VAC/30VDC 5A
4 inputs 12V
RS485
micro SD
micro USB
19 Leds
5 Serial (EPS-SIM800-RS485-Mbus-USB)
SPI + I2C

TECHNICAL DETAILS

Optional

4 + relays, total 7 outputs, only in the absence of the Ethernet module.

Ethernet module (W5500 Ethernet)
WiFi ESP01 module
Bluetooth HC-xx module
cellular modem SIM800
M-Bus
Battery RTC
Power supply 220V 12V internal.
Bootloader for firmware loading from micro SD
OLED display 128x128 pixel

HOW TO USE

GEVINO Civile
