FYD Open Source Hardware - W5500 Ethernet Module

Components

Hardware components

Project description

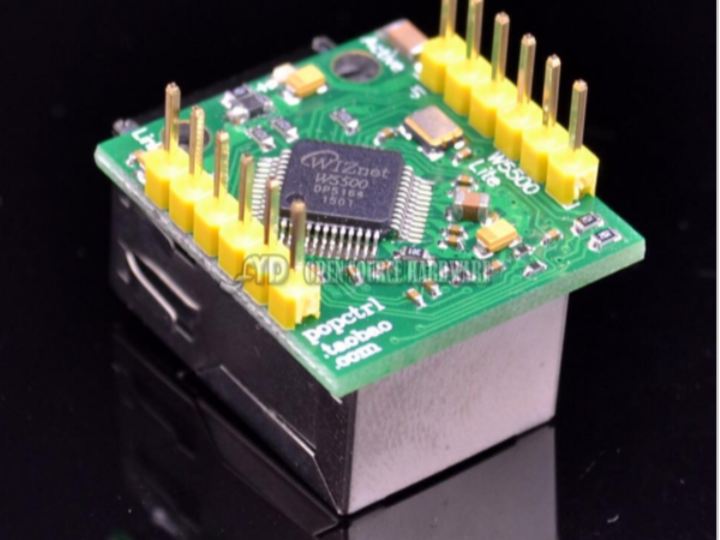

DETAILS FYD Open Source Hardware – W5500 Ethernet Module Product Information: USR-ES1 embedded W5500 chip, transmits a logic gate Wiznet TCP / IP protocol stack, for a hardware implementation using layer and a network layer (: a TCP, UDP, ICMP, IPv4, ARP, IGMP, pppoe protocol), integrated data link, physical , cache data transceiver 32 thousand bytes as chip RAM. Create a master PC chips, just bear TCP / IP application layer control information processing tasks. Therefore, the load PC data replication, protocol processing, and the interrupt handling, such as increased system utilization and…
