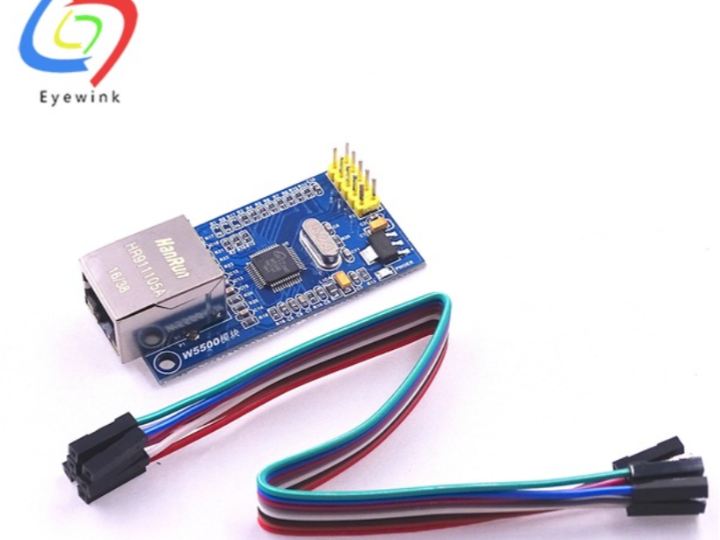

EYEWINK W 5500 ethernet network module

EYEWINK W 5500 ethernet network module

WIZnet

Published April 20, 2023

Original author: Eyewink · ChinaOriginal source (new tab)

EYEWINK W 5500 ethernet network module

Components

Hardware components

WIZnet parts

Project description

DETAILS DESCRIPRION W5500 Ethernet Network Module TCP/IP SPI Interface 51/STM32 Program W5100 Upgrade Edition Description: The W5500 module is a module based on Ethernet WIZNET new type of chip W5500, module integrates the whole hardware TCP/IP protocol stack, no need code implements the TCP/IP protocol stack, support transmission rate of 10/100MBPS, support sleep mode and wake on LAN ,Within the integrated 32K TX/RX cache,support 8 independent ports run at the same time,Module supports 3.3V or 5V power supply, convenient for the user to use in the SCM system different, module and MCU system…
